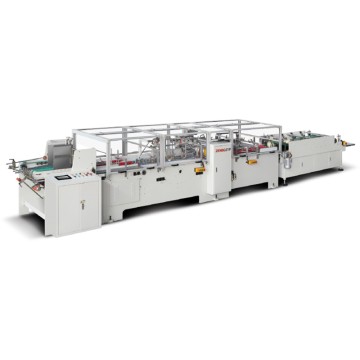

The ZB 60B single-sheet paper bottoming machine automatically transports unsealed paper bags, and after positioning, performs full glue bottoming operation (water-base glue). It has an automatic compaction function and overlapping output to form paper bags. This machine uses variable frequency speed regulation. Users can adjust the glue amount and gluing position according to bag making requirements. This machine makes bags evenly, has high precision, is fast, and is easy to operate. It can greatly improve the quality of your paper bags and shorten the delivery time. Expand business capabilities.
This equipment is suitable for paper of 120gsm or above, and is equipped with a water-base glue system as standard.

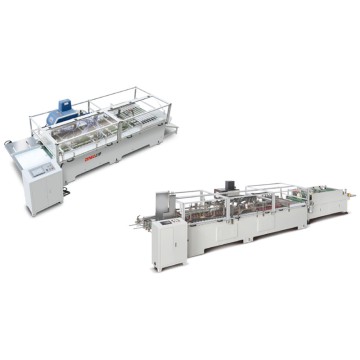

ZB 50B/ZB 50B-2/ZB 50B-3 single-sheet paper bottom gluing machine is an unsealed paper bag (by manually inserting the bottom cardboard or not inserting the bottom cardboard), which is manually transported, automatically sprayed with glue, automatic bottomed, and automatically After compaction and other processes, the output is a back-covered paper bag. This machine-made bag sprays glue evenly, has high bag making accuracy and fast speed, and can produce bags of various specifications.
This equipment is an economical bottom pasting machine invented by Zenbo (ZL 2013 1 0754999.4).
This series of equipment is suitable for paper of 170gsm or above, manual bag feeding, automatic glue spraying and bottoming. It is equipped with a hot melt glue system as standard. It has high production efficiency and high quality stability, and is suitable for the production of multiple varieties and small batches of products.

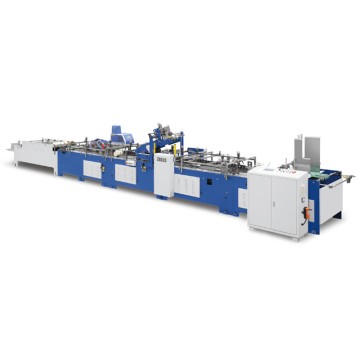

The ZB 50S/ZB 50S-1 sheet feeding paper bottom gluing machine series adopts advanced automation technology and can realize an integrated production process from sheet paper finished paper bottom.
ZB 50S/ZB 50S-1 single-sheet paper bottoming machine. This series of equipment automatically delivers bags, places bottom cards, and bottoms (square bottoms). It has high production efficiency and high quality stability. It is suitable for multiple varieties and small batches of products. Production. It is suitable for paper above 190gsm, and it has more advantages when used to paste the bottom of thick paper bags.
ZB50S is equipped with a hot melt adhesive system as standard, and ZB50S-1 is equipped with a water-soluble cold adhesive system as standard to meet the different process requirements of users.
Standard function: Automatically place the bottom card (square bottom).
Paper: kraft paper, white paper,ivory board paper.

ZB 1180AS single-sheet paper tube gluing machine is an efficient packaging equipment, specially used for the production of paper tube gluing process. The machine uses advanced automation technology to enable an integrated production process from paper rolls to finished papers. This equipment is a professional tube pasting machine invented by Zenbo (ZL 2014 1 0491318.4)! This equipment automatically feeds paper, folds the mouth (embedded), pastes the tube, and folds the organ. It comes standard with water-soluble cold glue system and hot melt glue system . All paper on the machine needs to be die-cut, suitable for paper above 150gsm. The speed of machine adjustment and plate change is fast, and the production efficiency is high. It is suitable for the production of multiple varieties and small batches of products. It is widely used in food, clothing, gifts and other industries. It is an ideal packaging equipment that can meet the production needs of different customers.
standard configuration：Automatic Top Folding, Tube Forming.
Paper : Art Paper , White Cardboard Paper , Kraft Paper Or Grey Cardboard Paper , All Paper Need Die Cut In Advance

Optional:Nordson hot melt adhesive system
Paper: kraft paper, coated paper, white paper, white cardboard. Paper above 180g needs to be coated and die-cut.
This series of equipment automatically feeds paper, forms tubes, and pastes the bottom, and automatically completes the paper bag production process. The paper bags are well formed and the production efficiency is high. Applicable to paper above 120gsm. The finished paper bag has no handles and no folding top. It is a basic paper bag machine that replaces manual bag making.
The advantages of the single paper bag making machine include: 1. Efficient production. 2. Flexible and applicable. 3. Automatic operation. 4. High-quality bag making. 5. Reliable and stable.

ZB 80S/ZB 60S/ZB 30S paper bottom gluing machine is a professional equipment used to produce paper bottoms. It uses advanced automation technology to efficiently complete the gluing work on the bottom of the paper. The machine operates quickly and accurately to ensure that the bottom of the paper is firmly bonded, flat and beautiful. The equipment is simple to operate and easy to maintain. It is one of the indispensable and important equipment in the paper production line.
This series of equipment is a professional bottom pasting machine invented by Zhengbo (ZL 2015 1 0044478.9; ZL 2013 1 0754999.4). Zhengbo invented the function of automatically placing the bottom card, which is applied to this series of equipment. This series of equipment automatically delivers bags, places bottom cards, and seals bottoms (eight-shaped bottoms). It has high production efficiency and high quality stability. It is suitable for the production of multiple varieties and small batches! It is even more advantageous when applied to tissue paper bags with bottoms.
Paper: kraft paper, coated paper, white paper, white cardboard.

ZB 700CT-240B single-sheet paper bag making machine adopts different paper bag types according to the performance of the packaged items. Other paper bags: including archival paper, envelopes, paper, cement bags, feed bags, wax paper bags, fertilizer bags, laminated paper bags, four-layer paper bags, medicine bags, clothing bags, food bags, shopping bags, gift bags, and wine bags. There are many requirements for different uses, including the size of the designed specifications, including the thickness of the paper bag paper. Therefore, it must be customized according to the actual situation to achieve twice the result with half the effort, economical and applicable purposes, and provides material savings, green environmental protection, and corporate capital investment. More protection.
paper : Art paper,special paper, Ivory Board paper. over 190g/听 paper Need Die-cutting In Advance.

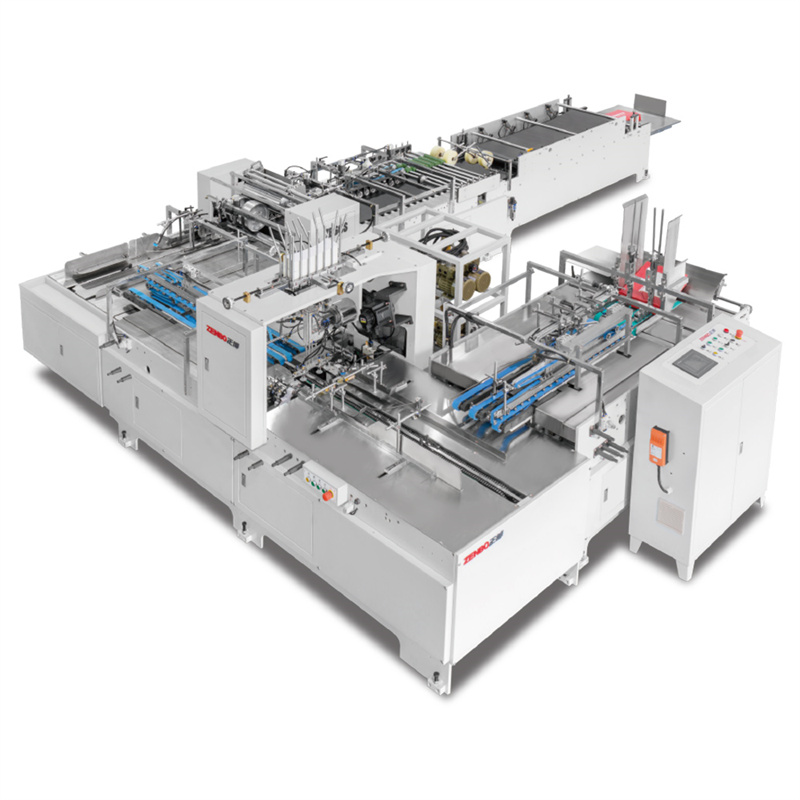

ZB 1450CT-550B/ZB 1200CT-430B single-sheet paper bag making machine, as long as the bag material contains a part of paper, it can be collectively called a paper bag. There are many varieties of paper bags, paper materials and styles. The standard technology includes: the bottom is eight-shaped bottom, the bottom is one-shaped bottom, and the bottom is V-shaped bottom. The whole machine can be customized with intelligent full servo.
ZB 1450CT-550B/ZB 1200CT-430B single-sheet paper bag making machine generally uses coated paper, special paper, white cardboard and other paper over 190g. All papers above 190g need to be die-cut before being put on the machine. They are different according to the bag edge, bottom and back sealing method. , if you produce luxury bags and boutique bags, have strict requirements on the quality of paper bags, and take into account the reduction of production costs, this series of equipment is your ideal choice.
