ZB 1450CT-550/ZB 1200CT-430 Single-Sheet Fully Automatic Handbag Bag Making Machine Sets New Production Standards

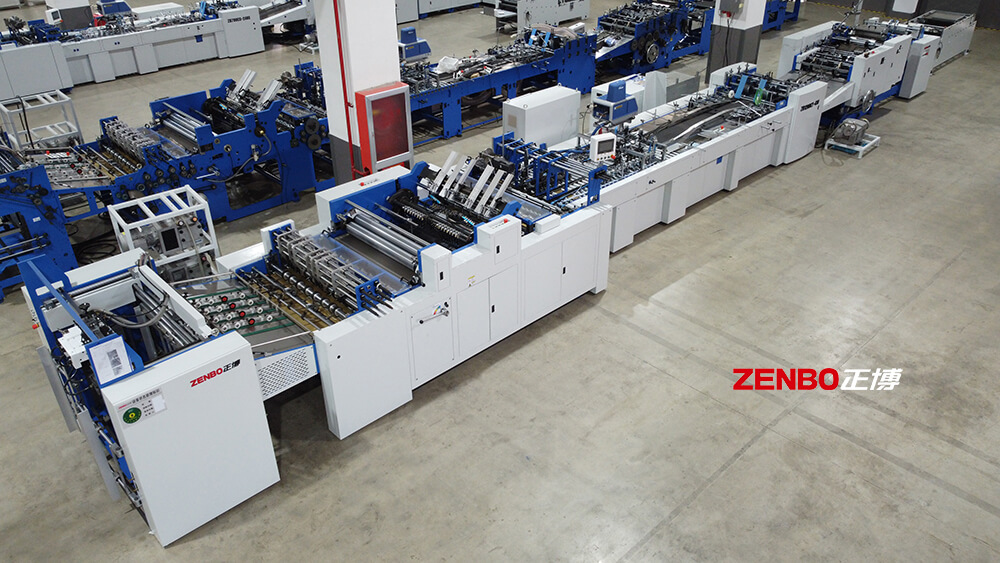

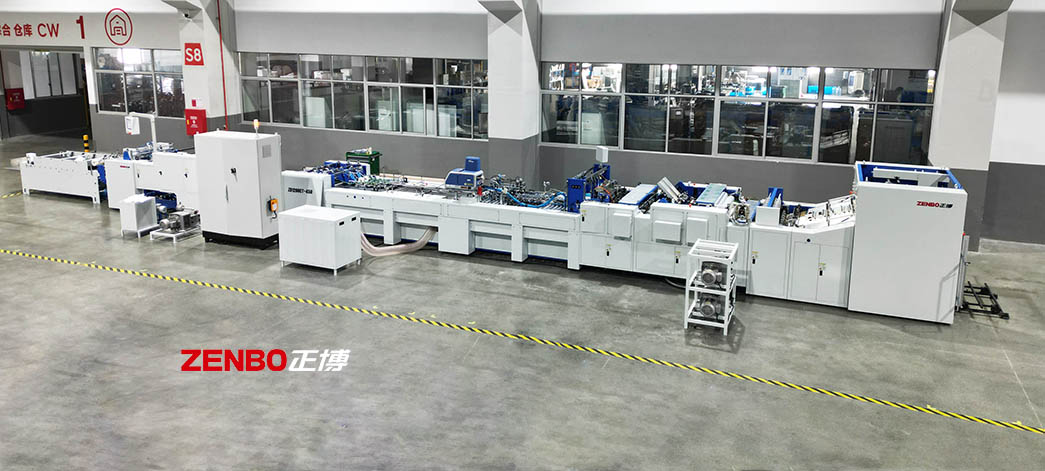

ZB 1450CT-550/ZB 1200CT-430 single-sheet fully automatic handbag bag making machine (independent invention) introduces internationally advanced production technology and management system. The humanized intelligent operation interface, combined with PLC and servo control system, makes the machine's technical performance and production efficiency at the internationally advanced level. It took the lead in pioneering high-speed automated bag making production. The machine uses a servo head card to realize the up and down adjustment of the head card position; the new half-knife function realizes the process of making the bag body traceless.
paper : Art paper,special paper, Ivory Board paper. over 190g/听 paper Need Die-cutting In Advance

    Description

    The CT series single-sheet feed paper bag machine was independently developed and produced by Zenbo in 2016. This series of equipment features modular combinability and strong expandability. Based on the functionalities it possesses, the series can be customized with functions such as intelligent full servo control function(E model), split bottom (T model), four-piece top reinforced card (F model), and insert bottom cardboard(S model), meeting the production needs of various luxury bags and high-quality boutique bags. Since its development, the CT series has undergone numerous adjustments and refinements, continually improving its reliability and stability through serving many global first-tier famous brands, proving its endurance over time.

    The ZB1200CT-430 machine primarily produces  paper bags with a finished length ranging from 180mm to 430mm and a gusset width ranging from 80mm to 170mm. It corresponds to the size range of bags this model can manufacture, capable of producing most large boutique paper bags available on the market. The top reinforced card size ranges from 160mm to 410mm in length and 25mm to 50mm in width.

    The ZB1450CT-550 machine primarily produces huge paper bags with a finished length ranging from 280mm to 550mm and a gusset width ranging from 100mm to 230mm. The top reinforced card size ranges from 260mm to 530mm in length and 25mm to 50mm in width.
    standard configuration Insert pasting option 1

    Automatic Top Reinforced cardboard pasting(2 pcs),Automatic Top Folding,square Bottom.

    zb1450cl9a
    Top Reinforce cardboard(F)
    ZB1200CT-430 (4)jbw

    Main Technical parameters

    ZB1200CT-430 (2)g7b
    Max.sheet (LX w) 1450x760mm
    Min.sheet (LX w) 780x380mm
    sheet weight 170-250g/㎡
    Top Folding Depth 30-60mm
    Bag Tube Length 350-730mm
    Bottom width 100-230mm
    Bag width 280-550mm
    Top Reinforced paperweight 200-500g/㎡
    Top Reinforced paper Length 260-530mm
    Top Reinforced paper width 25-50mm
    speed 30-60bags/min
    Machine size 23500x3630x1800mm
    (LxwxH)
    Total/production power 36.11/21.66kw
    Voltage 380V
    Total weight 21.5T
    Glue Type water Base Glue And Hot-melt Glue
    ZB1200CT-430 (3)bcg
    Max.sheet (LX w) 1200x600mm
    Min.sheet (LX w) 540x320mm
    sheet weight 120-250g/㎡
    Top Folding Depth 30-60mm
    Bag Tube Length 280-570mm
    Bottom width 80-170mm
    Bag width 180-430mm
    Top Reinforced paperweight 200-500g/㎡
    Top Reinforced paper Length 160-410mm
    Top Reinforced paper width 25-50mm
    speed 40-70bags/min
    Machine size 21000x3500x1800mm
    (LxwxH)
    Total/production power 36.11/21.66kw
    Voltage 380V
    Total weight 17T
    Glue Type water Base Glue And Hot-melt Glue
    ZB1200CT-430 (5)n06

    ZB1200CT-430

    ZB1200CT-430rqc 65dff9c46k
