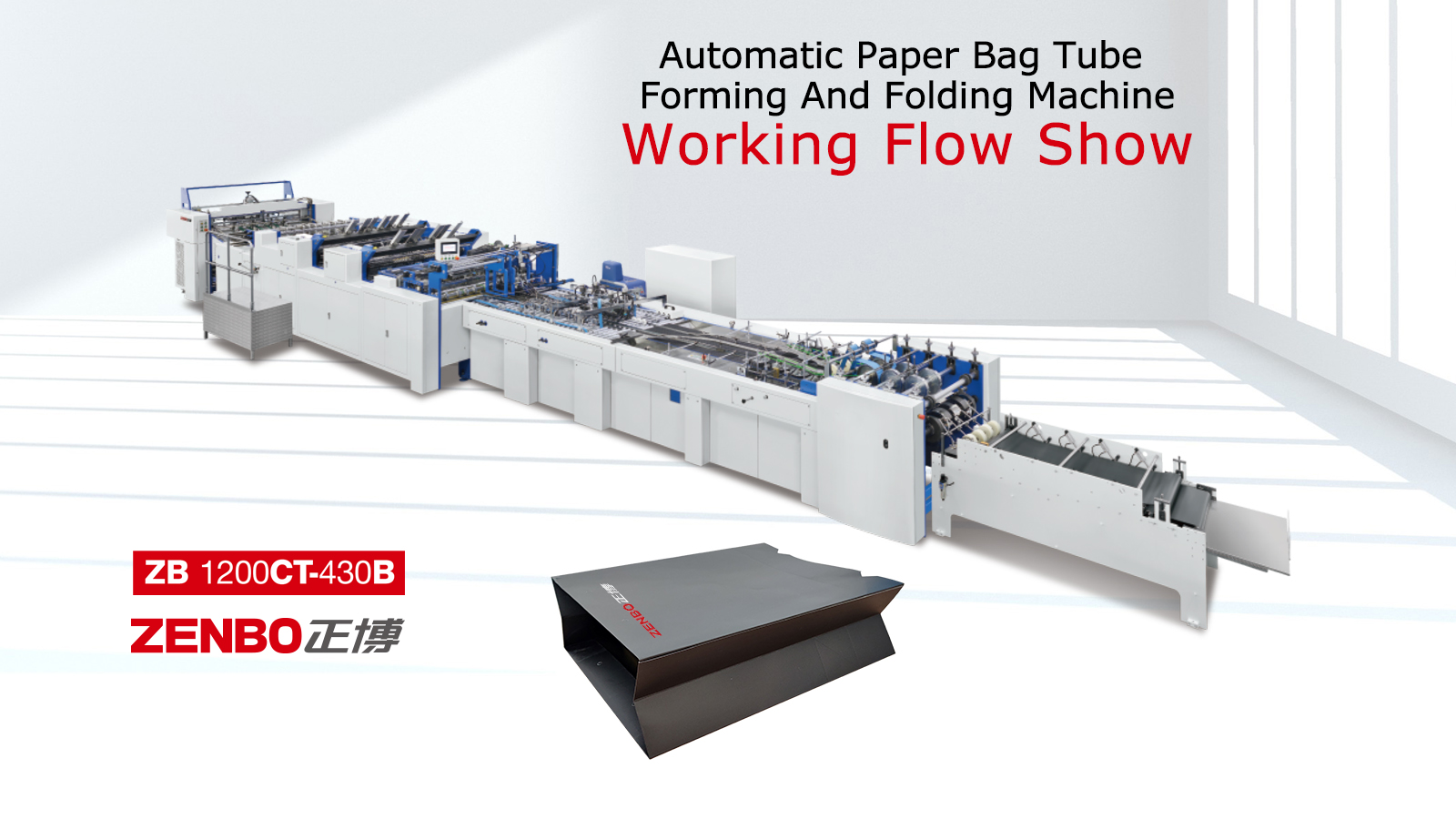

ZB 1450CT-550B/ZB 1200CT-430B Single Sheet Paper Bag Making Machine Has A Wide Range Of Functions To Meet Production Needs
Description
The CT-B series paper bag machine is a semi-automatic machine model developed independently by Zenbo, featuring single-sheet feed paper bag tube formation. This machine offers fast setup, high production efficiency, simple maintenance, and a long service life, making it a transformative device for paper bag factories transitioning from manual to machine-made bags.
This series of machines also comes standard with functions for two-piece top reinforced cards, top folding, and tube forming, significantly reducing quality issues such as uneven tube pasting and adhesive leakage during manual tube pasting processes. This reduces labor costs and minimizes defect rates.
The ZB1200CT-430B has a tube pasting length range of 280mm to 570mm and a width range of 100mm to 230mm, capable of performing functions such as tube forming for commonly seen large-sized paper bags in the market. The top reinforced card size ranges from 160mm to 410mm in length and 25mm to 50mm in width.
The ZB1450CT-550B has a tube pasting length range of 350mm to 730mm and a width range of 100mm to 230mm, also capable of performing functions such as tube forming for commonly seen huge-sized paper bags in the market. The top reinforced card size ranges from 260mm to 530mm in length and 25mm to 50mm in width.
standard configuration |
standard configuration |
option |
||
Automatic Top Reinforced cardboard pasting(2pcs), Automatic Top Folding, Tube Forming. |
square Bottom |
split Bottom |
V Fold Bottom |
4pcs Top Reinforce cardboard (F) |
Main Technical parameters
Max.sheet (LX w) | 1450x760mm |
Min.sheet (LX w) | 780x380mm |
sheet weight | 150-250g/㎡ |
Top Folding Depth | 30-60mm |
Bag Tube Length | 350-730mm |
Bottom width | 100-230mm |
Bag width | 280-550mm |
Top Reinforced paper weight Top Reinforced paper Length | 200-500g/㎡260-530mm |
Top Reinforced paper width | 25-50mm |
speed | 30-60bags/min |
Machine size(LxwxH) | 16300x3500x1840mm |
Total/production power | 37.4/22kw |
Voltage | 380V |
Total weight | 12.7T |
Glue Type | water Base Glue And Hot-melt Glue |
Max.sheet (LX w) | 1200x600mm |
Min.sheet (LX w) | 540x320mm |
sheet weight | 120-250g/㎡ |
Top Folding Depth | 30-60mm |
Bag Tube Length | 280-570mm |
Bottom width | 80-170mm |
Bag width | 180-430mm |
Top Reinforced paper weight Top Reinforced paper Length | 200-500g/㎡ 160-410mm |
Top Reinforced paper width | 25-50mm |
speed | 40-70bags/min |
Machine size(LxwxH) | 15300x3400x1800mm |
Total/production power | 29.5/17.7kw |
Voltage | 380V |
Total weight | 12T |
Glue Type | water Base Glue And Hot-melt Glue |
