G450/G380 High Speed Sheet fed Paper Bag With Handle Pasting Machine
Description
The new G series machine is designed to meet the needs of new entrants into the paper bag making industry for basic machines. Because this machine without top fold function, after designing a new structure, it can run at a very fast production speed.
Main Technical Parameters

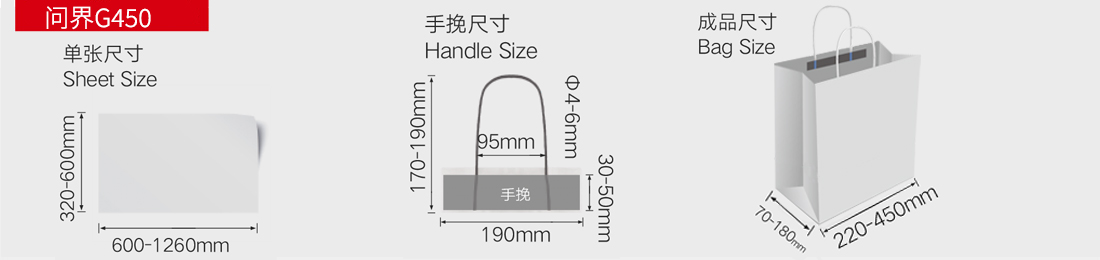

| NO. | G450 |
| Max. One Sheet(L*w) | 1260*600 |
| Min. One Sheet(L*w) | 600*320 |
| Sheet Weight | 120-190 |
| Bag width | 220-450 |
| Bottom width | 70-180 |
| Bag Tube Length | 320-600 |
| Handle Patch Weight | 100-190 |
| Handle Patch Diameter | Φ1000 |
| Handle Patch Roll Width | 60-100 |
| Speed | 100-180bags/min |
| Voltage | 380V |
| Total weight | 22T |
| Total/Production Power | 38/21.4KW |
| Machine Size(LxWxH) | 18000*5200*2300 |

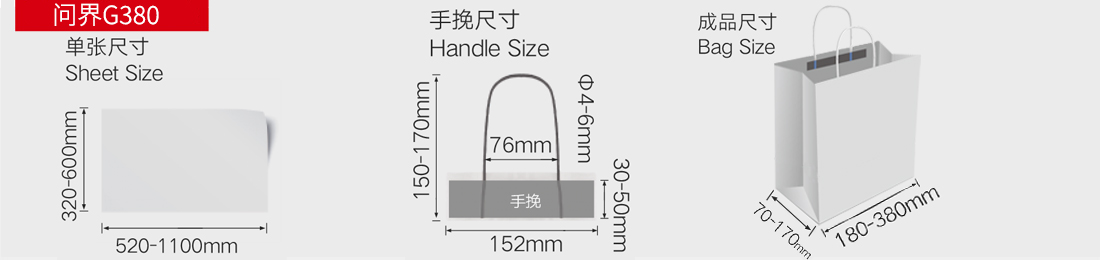

| NO. | G380 |
| Max. One Sheet(L*w) | 1100*600 |
| Min. One Sheet(L*w) | 520*320 |
| Sheet Weight | 120-190 |
| Bag width | 180-380 |
| Bottom width | 70-170 |
| Bag Tube Length | 320-600 |
| Handle Patch Weight | 100-190 |
| Handle Patch Diameter | Φ1000 |
| Handle Patch Roll Width | 60-100 |
| Speed | 100-180bags/min |
| Voltage | 380V |
| Total weight | 22T |
| Total/Production Power | 38/21.4KW |
| Machine Size(LxWxH) | 18000*5200*2300 |
