S-600 Fully automatic servo drive double sheets jointed paper bag making machine

The new generation of double-leaf paper bag machines, equipped with a fully servo-driven system, represents a major leap forward in manufacturing technology. This advanced machine is designed to achieve fast and automatic size changeovers, thereby increasing production flexibility and efficiency. Thanks to its innovative design, it is able to seamlessly adapt to different bag sizes without extensive manual intervention, thereby reducing downtime and increasing overall productivity. This feature not only simplifies the production process, but also enables companies to quickly respond to changing market demands and customer preferences. As a result, the new generation of machines stands out as an efficient solution for producing a wide range of paper bags, meeting modern packaging needs with ease and precision.

    Description

    The S series can realise one machine with dual-use, not only it can solve the issue of small width paper's inability to produce large bag width paper bags, but it can also be used as a single sheet paper bag machine, saving the client more than USD 3miion in initial bag manufacturing equipment costs.

    The entire machine is equipped with an intelligent full servo function, and size-changing efficiency has increased by 60% compared to the traditional model, single/double sheets function interchange only takes 10 minutes. The new generation double sheets jointed paper bag making machine equipped with full servo driven, can achieve quickly automatic size change.

    This equipment can do top card auto-pasting, rope insering is an optional function. This machine can handle any manufacturer, including luxury paper bags and high-end boutique paper bags.

    Single/Double Sheets Function
    Interchange Only Takes 10 Minutes.

    sheets

    Option

    4 Pieces Top Reinforce
    Cardboard(F)

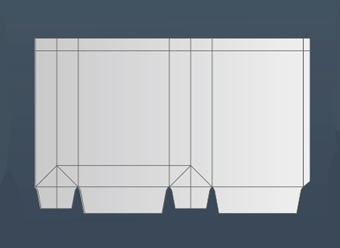

    Split Bottom

    Pasting Flat Ribbon Inline

    Pasting Round Rope Inline

    Pieces Top Reinforce Split Bottom Ribbon Inlin Round Rope

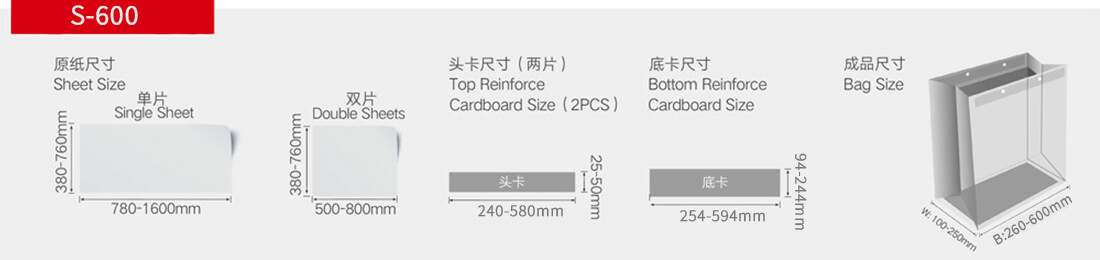

    Main Technical Parameters

    zenbo S-600 产品详情

    Sheet

    Max. One Sheet(LxW)

    mm

    1600x760

    Min. One Sheet(LxW)

    mm

    780x380

    Max. Double Sheets(LxW)

    mm

    800x760

    Min. Double Sheets(LxW)

    mm

    500x380

    Sheet Weight

    g/m2

    170-250

    Bag

    Top Folding Depth

    mm

    30-60

    Bag Tube Length

    mm

    350-720

    Bottom Width

    mm

    100-250(≤800-W-20)

    Bag Width

    mm

    260-600(≤800-B-20)

    Top Reinforced

    Paper Weight

    g/m2

    200-500

    Paper Length

    mm

    240-580

    Paper Width

    mm

    25-50

    Bottom Cardboard

    Weight

    g/m2

    250-400

    Width

    mm

    94-244

    Length

    mm

    254-594

    Machine

    Power

    kW

    70.7/42.4

    Voltage

    V

    380

    Speed



    40-60bags/min

    Machine Size

    mm

    28000X6500X1800

    (LxWxH)





    Total Weight

    T

    31
