T-260/T-180/T-130 New generation high speed roll to sheet fed paper bag with handle machine

The new generation of T-series paper bag machines with handles is equipped with a range of advanced features that significantly enhance its performance and versatility. One of its outstanding features is its amazing operating speed, which can produce up to 8,000 bags per hour, twice as fast as traditional machines. Such amazing speed not only improves productivity, but also enables manufacturers to efficiently meet high demand.
The T-Series machines are equipped with a quick-change handle mechanism, allowing operators to easily and quickly switch between two different sizes of handles. This flexibility is particularly beneficial for businesses that need to produce a variety of bag styles and sizes to meet different customer needs. All in all, the new generation of T-Series machines represents a major advancement in paper bag manufacturing technology, combining speed, efficiency and adaptability to produce high-quality products that meet the ever-changing market needs.

    Description

    The T series uses the roll feeding method with top folding craft. It reduces the frequency of paper specification changing and the downtime of the machine, The speed is twice that of the traditional models.The new generation T series paper bag with handle making machine have more functions,such as:speed more quickly,two size handle quickly change and so on.Speed Breaks 8000 Twice As Fast As Traditional Machines.
    Two handle patch size can be changed in 30 minutes, this solves the dilemma of users in choosing machines due to the diversification of producion orders, compared to traditional paper bag machines, this innovative model can save 6-8kg of handle raw material per day by using full servo-controlled handle cutting, decreasing the investment cost while maintaining high efficiency, achieving the maximum economic efficiency.
    The whole machine is equipped with power servos, and some units are configured with adjustable servos, which reduces the difficulty of machine adiustment, saves time, and improves production stability, The intelligent full-servo (Model E) function of the whole machine can be customized, largely shortening the size changing time, and assisting in the fully automatic production industry challenge of diverse paper
    bags with small order quantities, creating more market value for users.

    Option

    Full Servo Machine

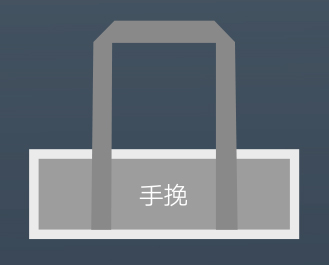

    Flat Handle

    Handle Sizes Interchange
    In 30 Minutes

    Full Servo Machine Flat Handle

    Main Technical Parameters

    zenboT260产品详情

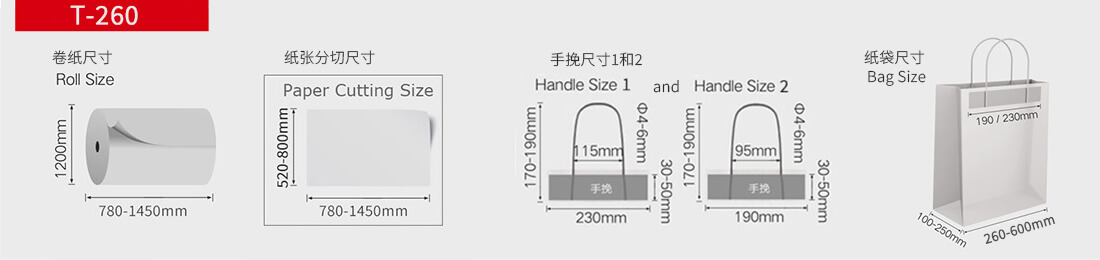

    T-260 Main Technical1 Main Technical2 Main Technical3
    Paper Roll Width 780-1450mm 780-1450mm 780-1450mm
    Slitting Length 520-800mm 520-740mm 520-800mm
    Max Roll Diameter/weight Φ1200mm/1200kg Φ1200mm/1200kg Φ1200mm/1200kg
    Paper Core Diameter Φ76mm Φ76mm Φ76mm
    Sheet Weight 100-190gsm 100-190gsm 100-190gsm
    Bag Width 260-600mm 260-600mm 260-600mm
    Bottom Width 100-250mm 100-250mm 100-250mm
    Bag Tube Length 460-740mm 520-740mm 460-740mm
    Top Folding Depth 40-60mm - 40-60mm
    Handle Patch Length 230mm/190mm 230mm/190mm 230mm/190mm
    Handle Patch Width 30-50mm 30-50mm 30-50mm
    Handle Patch Weight 120-190gsm 120-190gsm 120-200gsm
    Handle Patch Roll Diameter Φ1000mm Φ1000mm Φ1000mm
    Handle Patch Roll Width 60-100mm 60-100mm 60-100mm
    Paper Rope Diameter Φ4-6mm Φ4-6mm -
    Handle Rope Height 170-190mm 170-190mm -
    Speed 50-100bags/min
    Total/Production Power 62.5/37.5KW
    Voltage 380V
    Total Weight 32.3T
    Machine Size(LXWXH) 20000*6500*3150mm
    Glue Type Water Base Glue And Hot-melt Glue

    T180

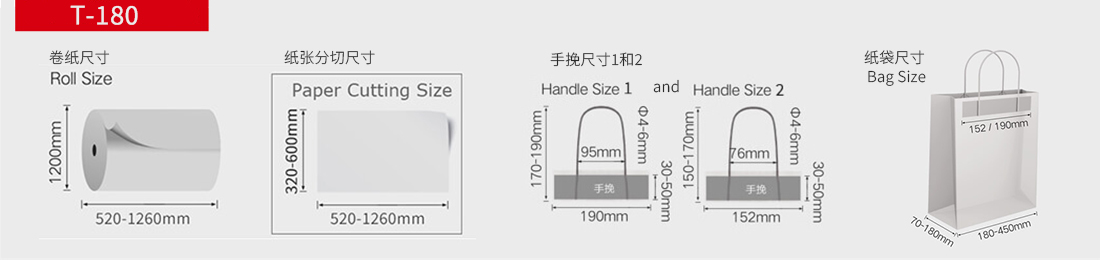

    T-180 Main Technical1 Main Technical2 Main Technical3
    Paper Roll Width 520-1260mm 520-1260mm 520-1260mm
    Slitting Length 320-600mm 320-560mm 320-600mm
    Max Roll Diameter/weight Φ1200mm/1200kg Φ1200mm/1200kg Φ1200mm/1200kg
    Paper Core Diameter Φ76mm Φ76mm Φ76mm
    Sheet Weight 100-190gsm 100-190gsm 100-190gsm
    Bag Width 180-450mm 180-450mm 180-450mm
    Bottom Width 70-180mm 70-180mm 70-180mm
    Bag Tube Length 280-560mm 320-560mm 280-560mm
    Top Folding Depth 40-60mm - 40-60mm
    Handle Patch Length 190mm/(152mm) 190mm/(152mm) 190mm/(152mm)
    Handle Patch Width 30-50mm 30-50mm 30-50mm
    Handle Patch Weight 100-190gsm 100-190gsm 100-200gsm
    Handle Patch Roll Diameter Φ1000mm Φ1000mm Φ1000mm
    Handle Patch Roll Width 60-100mm 60-100mm 60-100mm
    Paper Rope Diameter Φ4-6mm Φ4-6mm -
    Handle Rope Height 170-190mm/(150-170mm) 170-190mm/(150-170mm) -
    Speed 70-150bags/min
    Total/Production Power 57.5/34.5KW
    Voltage 380V
    Total Weight 29.3T
    Machine Size(L*W*H) 18700*6200*2950mm
    Glue Type Water Base Glue And Hot-melt Glue

    T130

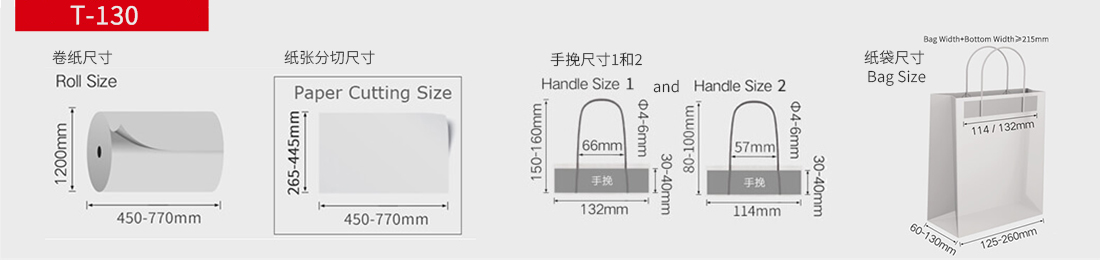

    T-130 Main Technical1 Main Technical2 Main Technical3
    Paper Roll Width 450-770mm 450-770mm 450-770mm
    Slitting Length 265-445mm 225-405mm 265-445mm
    Max Roll Diameter/weight Φ1200mm/1200kg Φ1000mm/1000kg Φ1000mm/1000kg
    Paper Core Diameter Φ76mm Φ76mm Φ76mm
    Sheet Weight 100-190gsm 100-190gsm 100-190gsm
    Bag Width 125-260mm 125-260mm 125-260mm
    Bottom Width 60-130mm 60-130mm 60-130mm
    Bag Tube Length 225-405mm 225-405mm 225-405mm
    Top Folding Depth 40-50mm - 40-50mm
    Handle Patch Length 132mm/114mm 132mm/114mm 132mm/114mm
    Handle Patch Width 30-50mm/(30-40mm) 30-50mm/(30-40mm) 30-50mm/(30-40mm)
    Handle Patch Weight 120-190gsm 120-190gsm 120-200gsm
    Handle Patch Roll Diameter Φ1000mm Φ1000mm Φ1000mm
    Handle Patch Roll Width 60-80mm 60-80mm 60-80mm
    Paper Rope Diameter Φ4-6mm Φ4-6mm -
    Handle Rope Height 150-160mm/(80-100mm) 150-160mm/(80-100mm) -
    Speed 70-150bags/min
    Total/Production Power 57.5/34.5KW
    Voltage 380V
    Total Weight 25.3T
    Machine Size(LXWXH) 18500*6100*2950mm
    Glue Type Water Base Glue And Hot-melt Glue
