V-200 New fully automatic V bottom paper bag making machine

The world premiere of the V-Series machine marks a major advancement in paper bag manufacturing as it is able to achieve stunning synchronization with the V-bottom process of luxury paper bags. This innovative machine not only increases production efficiency, but also improves the quality of the final product. By integrating cutting-edge technology, the V-Series machine ensures seamless replication of the exquisite craftsmanship of luxury paper bags, allowing manufacturers to meet the market's high expectations. The breakthrough in design and functionality of the V-Series makes it a game-changer for companies seeking to produce high-end paper bags with precision and artistry.

    Description

    The V series can achieve bag craft synchronized with luxury paper bag V-bottom craft, break through technical barriers, and subvert the traditional process of that semi-auto paper bag making machine and manual combination, this machine can realize that one sheet paper feeding till the finished bag output, to achieve the quality of thousands of bags as the same standard for the vertical chain of users to provide protection.
    This entire machine can be customized with intelligent full servo (E model), bottom card auto-putting. Rope inserting is an optional function. The world debut V series machine can achieve bag craft synchronized with luxury paper bag V-bottom craft.
    V200 Synchronized With Luxury Paper Bag V-Bottom Process. This machine is an excellent solution for producing high-quality paper bags with luxurious artistry.

    Option

    Full Servo Machine

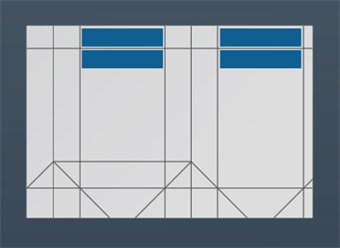

    4 Pieces Top Reinforce
    Cardboard(F)

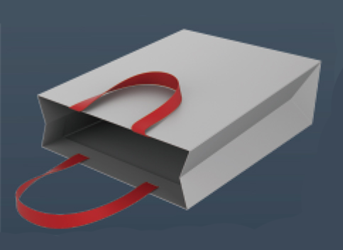

    Pasting Flat Ribbon Inline

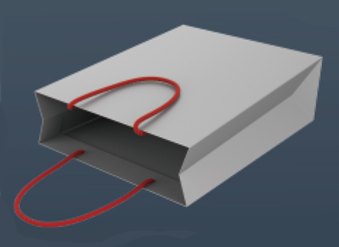

    Pasting Round Rope Inline

    Pieces Top Reinforce Split Bottom Ribbon Inlin Round Rope

    Main Technical Parameters

    V-200

    Sheet

    Max.Sheet(LXW)

    mm

    1200x600

    Min.Sheet (LX W)

    mm

    540x320

    Sheet Weight

    g/m2

    170-300

    Bag

    Top Folding Depth

    mm

    30-60

    Bag Tube Length

    mm

    280-570

    Top Reinforced

    Paper Weight

    g/m2

    200-500

    Paper Length

    mm

    160-410

    Paper Width

    mm

    25-50

    Machine

    Speed

     bags/min

     40-70

    Machine Size

     mm

     26000*3500*1800

    (LxWxH)





    Power

     KW

     42/25.2

    Voltage

     V

     380

    Total Weight

     T

     18
