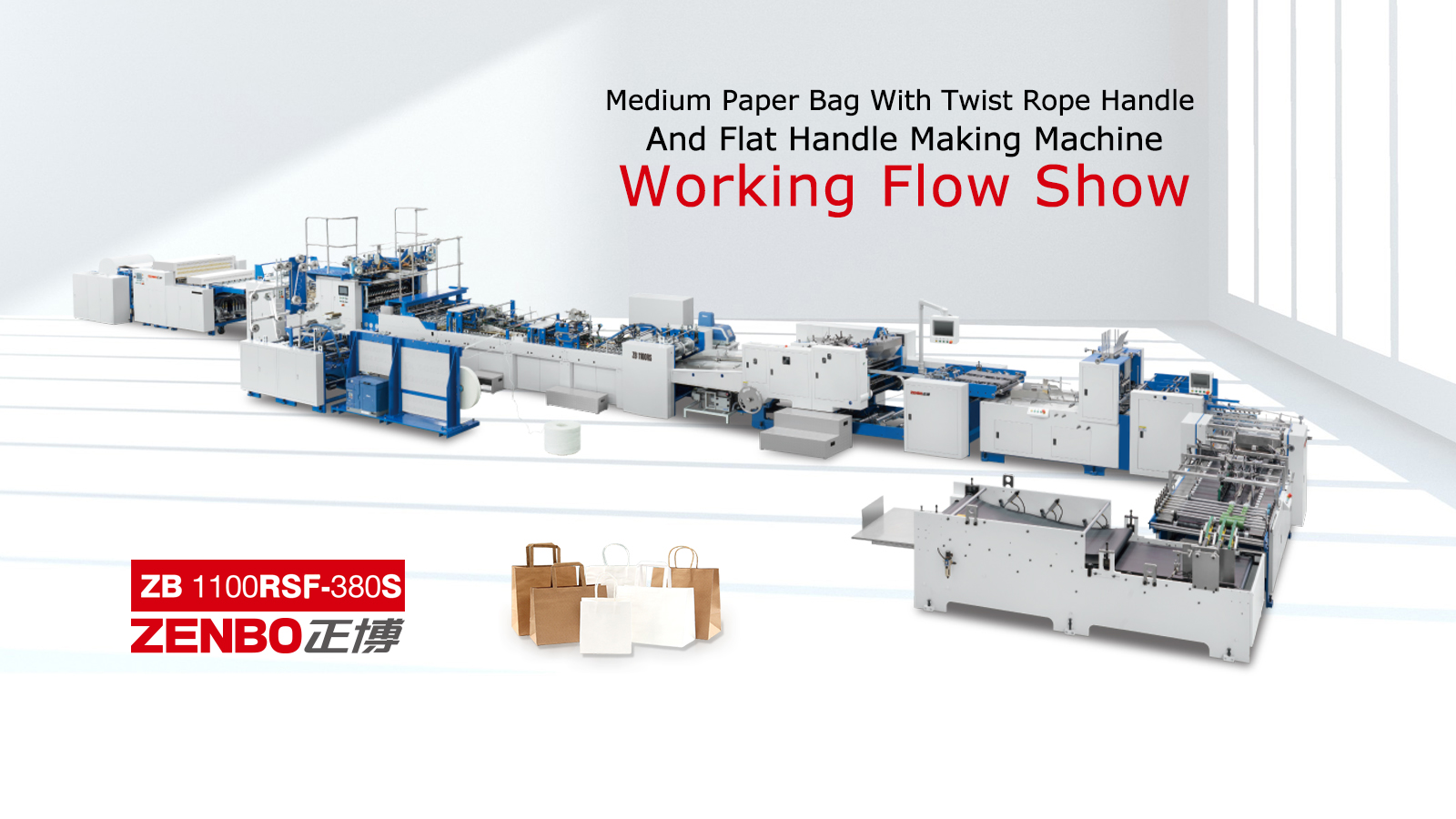

ZB 1100RS-380S/ZB 700RS-250S Fully Automatic Paper Bag Making Machine Revolutionizes Paper Bag Equipment

Compared with single-sheet paper feeding machine, the ZB 1100RS-380S/ZB 700RS-250S fully automatic paper bag making machine has a production capacity increased by more than 20%, solving quality hazards such as deformation of the base paper after slitting, helping users save production investment and reduce production costs.
Handle Full servo cutting system.
The Intelligent Full servo Machine can Be customized.
This series of machines is a patented product invented by Zenbo (ZL 2017 1 0652588.2; ZL 2015 1 0162894.9; ZL 2015 1 0044478.9), and was awarded  "the first (set) in key areas" in china.
paper: kraft paper, Art paper (Including Film Laminated paper).

    Description

    This series of paper bag machines can simultaneously use two types of paper feeding methods: roll feeding and sheet feeding, meeting the requirements of different printing processes for paper. The roll feeding method eliminates the traditional process of cutting paper, reducing the number of paper loading cycles and downtime for paper changeovers, decreasing the workload for operators, and lowering labor intensity. Compared to sheet feeding, the roll feeding method increases productivity by more than 20% and solves issues such as paper deformation after cutting, which affects the quality of paper bags. This saves users' investment in paper bag production and reduces production costs. The handle can be customized with either round or flat rope, and employs full-servo handle cutting, saving 6-8 kilograms of paper handle material per day compared to traditional paper bag machines. This type of paper bag machine includes automatic folding and bottom cardboard inserting functions, ensuring stable operation and high production speed. The fully customizable intelligent full-servo (E) model significantly reduces setup time, addressing the industry challenge of automatic machines producing small batches of diverse paper bags, thereby creating more market value for users.

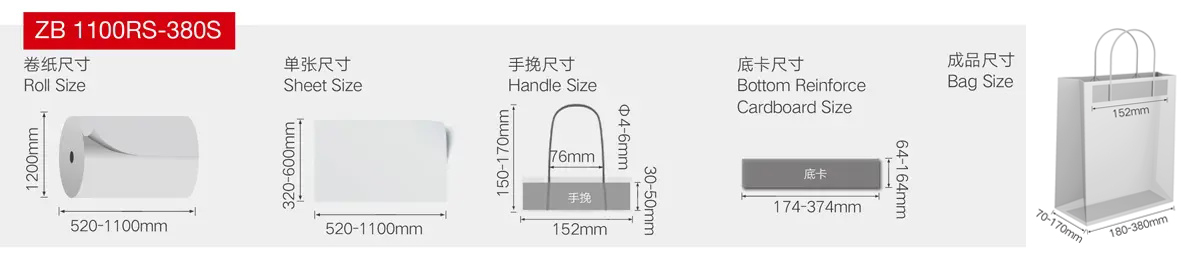

    The ZB1100RS-380S is designed for mass production of medium-sized paper bags with handles. The machine primarily produces finished paper bags with lengths ranging from 180mm to 380mm and accordion widths ranging from 70mm to 170mm. If you need to confirm whether this machine can produce medium-sized paper bags, please send the bag's dimensional data for easy contact, and we will reply to your inquiry as soon as possible.

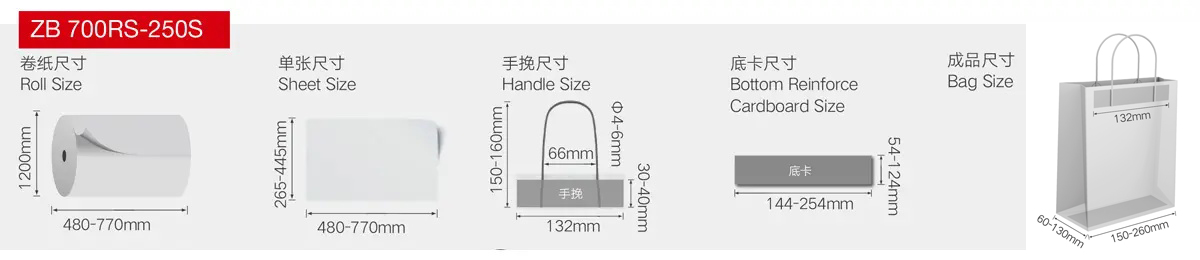

    The ZB700RS-250S is designed for mass production of small-sized paper bags with handles. The machine primarily produces finished paper bags with lengths ranging from 150mm to 260mm and accordion widths ranging from 60mm to 130mm, capable of producing most small-sized paper bags available in the market. Please feel free to contact us, and we will tailor a reasonable machine solution based on your specific requirements.

    Standard configuration

    Option 1

    Option 2

    Top folding Joint Type: Directly pasting
    Gluing position on Big side (Bag surface)

    Top folding Joint Type: Insert pasting
    Gluing position:small side (Gusset)

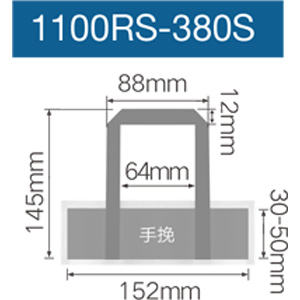

    Flat Handle

     ZB700RS-250S (4)y5k

     ZB700RS-250S (5)5jq



    ZB700RS-250S (8)7lz

    Main Technical parameters

    3
    3 Bag Mouth Processes 1-zb1450rs-550s 2-zb1450rs-550s 3-zb1450rs-550s
    Roll Paper Roll Width mm 520-1100 520-1100 520-1100
    Slitting Length mm 320-600 320-560 320-600
    Max. Roll Diameter mm Φ1200 Φ1200 Φ1200
    Max. Roll Weight kg 1200 1200 1200
    Paper Core Diameter mm Φ76 Φ76 Φ76
    Sheet Max.Sheet(LxW) mm 1100X600 1100X560 1100X600
    Min.Sheet(LxW) mm 520X320 520X320 520X320
    Sheet Weight g/m² 100-190 100-190 100-190
    Bag Bag Tube Length mm 280-560 320-560 280-560
    Top Folding Depth mm 40-60 - 40-60
    Handle Patch Weight g/m² 120-190 120-190 120-200
    Handle Patch Roll Diameter mm Φ1000 Φ1000 Φ1000
    Handle Patch Roll Width mm 60-100 60-100 60-100
    Bottom
    Cardboard
    Weight g/m² 250-400 250-400 250-400
    Width mm 64-164 64-164 64-164
    Length mm 174-374 174-374 174-374
    Machine Speed   40-80bags/min
    Voltage V 380
    Total Weight T 33.3
    Total/Production Power kW 56.5/33.9
    Machine Size(LxWxH) mm 22200x6200x2950
    4
    3 Bag Mouth Processes  4-zb1260rs-450s  5-zb1260rs-450s  6-zb1260rs-450s
    Roll Paper Roll Width mm 480-770 480-770 480-770
    Slitting Length mm 265-445 265-405 265-445
    Max. Roll Diameter mm Φ1200 Φ1000 Φ1000
    Max. Roll Weight kg 1000 1000 1000
    Paper Core Diameter mm Φ76 Φ76 Φ76
    Sheet Max.Sheet(LxW) mm 770X445 770X405 770X445
    Min.Sheet(LxW) mm 480X265 480X225 480X265
    Sheet Weight g/m² 100-190 100-190 100-190
    Bag Bag Tube Length mm 225-405 225-405 225-405
    Top Folding Depth mm 40-50 - 40-50
    Handle Patch Weight g/m² 120-190 120-190 120-200
    Handle Patch Roll Diameter mm Φ1000 Φ1000 Φ1000
    Handle Patch Roll Width mm 60-80 60-80 60-80
    Bottom
    Cardboard
    Weight g/m² 250-400 250-400 250-400
    Width mm 54-124 54-124 54-124
    Length mm 144-254 144-254 144-254
    Machine Speed   40-80bags/min
    Voltage V 380
    Total Weight T 29.3
    Total/Production Power kW 56.5/33.9
    Machine Size(LxWxH) mm 22400x6000x2950
