ZB 1260S-450/ZB 1100S-380 Single-Sheet Fully Automatic Paper Bag Making Machine Revolutionizes Packaging Solutions
Description
In 2015, Zenbo company officially developed the first machine in the S series. After purchase and use, customers have given us excellent feedback. Over the years, based on customer feedback, we have continuously improved the machine details, making this series of machines even more perfect. If you produce eco-friendly paper bags and have stringent quality requirements while also aiming to reduce production costs, this series of equipment is an ideal choice.
This series has served many globally renowned brands and has been sold to developed countries such as Germany, Italy, and the United States, as well as developing countries in South America and Southeast Asia, with total sales exceeding 300 units. Zenbo has always been committed to excellent customer service, meticulously recording and addressing customers' reasonable demands.
The equipment in this series offers a choice of round and flat handles, and uses fully servo motor controlled blades to cut the handles. This allows for the simultaneous feeding of paper and cutting of paper handles during production. When no paper is fed into the machine, the handle transmission stops, saving 6-8 kilograms of handle material per day compared to traditional paper bag machines, offering users more options and reducing production costs. The automatic top folding (pasting type) feature ensures stable operation and increases production speed by over 30%.
The ZB1260S-450 is a single-sheet paper bag machine with handles, producing paper bags with lengths ranging from 220mm to 450mm and gusset widths from 70mm to 180mm. This machine can produce most large paper bag sizes available on the market. It is advised to accurately determine the primary production sizes of your paper bag factory before purchasing.
The ZB1100S-380 is mainly designed for producing medium-sized paper bags with handles. It produces paper bags with lengths ranging from 180mm to 380mm and gusset widths from 70mm to 170mm. The machine is highly stable and efficient within these parameter ranges. If your required paper bag sizes are slightly larger or smaller, please contact us, and we will provide a suitable solution.
Standard configuration |
Option 1 |
Option 2 |
Top folding Joint Type: Directly pasting |
Top folding Joint Type: Insert pasting |

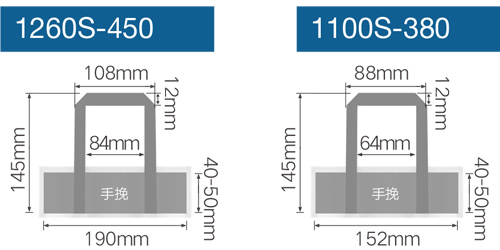

Flat Handle |
|
|
|
Main Technical parameters
| 3 Bag Mouth processes |
|
|
|
| Max.sheet(Lxw) | 1260x600mm | 1260x560mm | 1260x600mm |
| Min.sheet(Lxw) | 600x320mm | 600x320mm | 600x320mm |
| sheet weight | 120-190g/m2 | 120-190g/m2 | 120-190g/m2 |
| Bag width | 220-450mm | 220-450mm | 220-450mm |
| Bottom width | 70-180mm | 70-180mm | 70-180mm |
| Bag Tube Length | 280-560mm | 320-560mm | 280-560mm |
| Top Folding Depth | 40-60mm | —— | 40-60mm |
| Handle patch weight | 140-200g/m2 | 140-200g/m2 | 250-350g/m2 |
| Handle patch Roll Diameter | Φ1000mm | Φ1000mm | Φ1000mm |
| Handle patch Roll width | 60-100mm | 60-100mm | 60-100mm |
| speed | 40-70bags/min | Glue Type | water Base Glue And Hot -melt Glue |
| Voltage | 380V | Total/production power | 42/25.2Kw |
| Total weight | 22T | Machine size(LxwxH) | 16500x5600x2950mm |
| 3 Bag Mouth processes |
|
|
|
| Max.sheet(Lxw) | 1100x600mm | 1100x560mm | 1100x600mm |
| Min.sheet(Lxw) | 520x320mm | 520x320mm | 520x320mm |
| sheet weight | 120-190g/m2 | 120-190g/m2 | 120-190g/m2 |
| Bag width | 180-380mm | 180-380mm | 180-380mm |
| Bottom width | 70-170mm | 70-170mm | 70-170mm |
| Bag Tube Length | 280-560mm | 320-560mm | 280-560mm |
| Top Folding Depth | 40-60mm | —— | 40-60mm |
| Handle patch weight | 140-200g/m2 | 140-200g/m2 | 250-350g/m2 |
| Handle patch Roll Diameter | Φ1000mm | Φ1000mm | Φ1000mm |
| Handle patch Roll width | 60-100mm | 60-100mm | 60-100mm |
| speed | 40-70bags/min | Glue Type | water Base Glue And Hot -melt Glue |
| Voltage | 380V | Total/production power | 42/25.2Kw |
| Total weight | 22T | Machine size(LxwxH) | 16500x5600x2950mm |
