ZB 1450RS-550S/ZB 1260RS-450S Fully Automatic Paper Bag Making Machine Efficient And Environmentally Friendly Production

This ZB 1450RS-550S/ZB 1260RS-450S series of machines can be used in both roll and sheet feeding methods to meet the different printing process papers. Roll feeding method eliminates the traditional slitting process, reduces the number of times of paper loading and paper change downtime, reduces the number of operators and reduces labour intensity.

Handle Full servo cutting system.

The Intelligent Full servo Machine can Be customized.

This series of machines is a patented product invented by Zenbo (ZL 2017 1 0652588.2; ZL 2015 1 0162894.9; ZL 2015 1 0044478.9), and was awarded "the first (set) in key areas" in china.

Paper: kraft paper, Art paper (Including Film Laminated paper).

product details

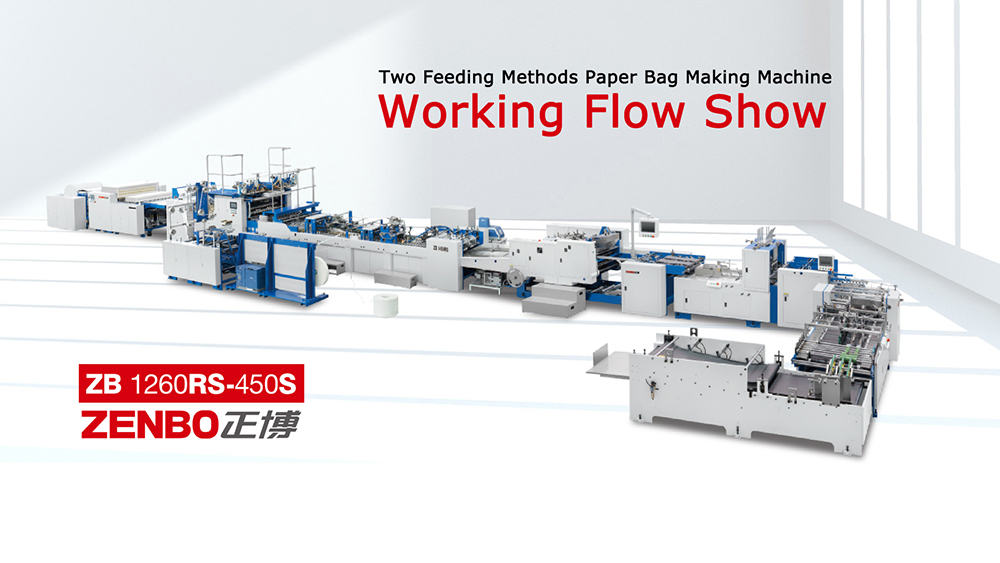

Production Working Flow

Machine Work Or Advantages Introduction Video

Description

This series of machines, innovatively developed by Zenbo, have obtained the first domestic research and development certification. We have consistently been imitated by our peers, yet never surpassed. While we continue to uphold our legitimate rights, we also continue to lead the steady progress of the paper bag machine industry.

This series of paper bag machines can utilize two different feeding methods: roll feeding and single sheet feeding. With the ability to quickly switch between these feeding methods using a single button, we meet the needs of different paper bag orders requiring various printed paper materials. This achieves the functionality of two machines in one, significantly reducing the space required for equipment and saving capital expenditure.

When using the roll feeding mode, the unit for cutting roll paper is included within the production line, eliminating the hassle of manually cutting roll paper into sheets before stacking them into the machine. This reduces the number of manual operations and enhances work efficiency by 20%. When using the single sheet feeding mode, it operates as smoothly and steadily as the S series machines.

The RS-S series of paper bag machines come standard with a bottom card insertion function, allowing the bags to look more appealing when opened and capable of bearing more weight.

The ZB1260RS-450S model, tailored to meet the demand for producing high-quality paper bags with handles on the market, incorporates roll feeding and cutting modules on the basis of the S-S series. It primarily produces large-sized paper bags commonly found in the market. If you are entering the paper bag machine industry and need to mass-produce standard-sized high-quality paper bags with handles, this machine is ideal for your purchase.

The ZB1450RS-550S is designed for mass-producing large-sized paper bags with handles. The finished bag length produced by this machine ranges from 330mm to 550mm, with a bellows width range of 100mm to 230mm. If you have large-sized paper bags to produce and need to confirm whether this machine is suitable, please provide us with the bag's dimensions, and we will quickly assess whether this machine can produce the size you require. If not, we can also provide customized machine services to meet your paper bag production needs as much as possible.

Standard configuration	Option 1	Option 2
Top folding Joint Type: Directly pasting Gluing position on Big side (Bag surface)	Top folding Joint Type: Insert pasting Gluing position:small side (Gusset)	Flat Handle

Main Technical parameters

3 Bag Mouth processes
paper Roll width	880-1450mm	880-1450mm	880-1450mm
slitting Length	520-800mm	460-740mm	520-800mm
Max. Roll Diameter/weight	Φ1200mm/1200kg	Φ1200mm/1200kg	Φ1200mm/1200kg
paper core Diameter	Φ76mm	Φ76mm	Φ76mm
Max.sheet(Lxw)	1450x800mm	1450x760mm	1450x800mm
Min.sheet(Lxw)	880x520mm	880x460mm	880x520mm
sheet weight	120-190g/m2	120-190g/m2	120-190g/m2
Bag Tube Length	460-740mm	460-740mm	460-740mm
Top Folding Depth	40-60mm	——	40-60mm
Handle patch weight	140-200g/m2	140-200g/m2	250-350g/m2
Handle patch Roll Diameter	Φ1000mm	Φ1000mm	Φ1000mm
Handle patch Roll width	60-100mm	60-100mm	60-100mm
Bottom cardboard weight	250-400g/m2	250-400g/m2	250-400g/m2

speed	40-60bags/min	Glue Type	water Base Glue And Hot -melt Glue
Voltage	380V	Total/production power	67/40kw
Total weight	36.3T	Machine size(LxwxH)	1.29600x6800x3150mm 2.27000x6800x3150mm

3 Bag Mouth processes
paper Roll width	600-1260mm	600-1260mm	600-1260mm
slitting Length	320-600mm	320-560mm	320-600mm
Max. Roll Diameter/weight	Φ1200mm/1200kg	Φ1200mm/1200kg	Φ1200mm/1200kg
paper core Diameter	Φ76mm	Φ76mm	Φ76mm
Max.sheet(Lxw)	1260x600mm	1260x560mm	1260x600mm
Min.sheet(Lxw)	600x320mm	600x320mm	600x320mm
sheet weight	120-190g/m2	120-190g/m2	120-190g/m2
Bag Tube Length	280-560mm	320-560mm	280-560mm
Top Folding Depth	40-60mm	——	40-60mm
Handle patch weight	140-200g/m2	140-200g/m2	250-350g/m2
Handle patch Roll Diameter	Φ1000mm	Φ1000mm	Φ1000mm
Handle patch Roll width	60-100mm	60-100mm	60-100mm
Bottom cardboard weight	250-400g/m2	250-400g/m2	250-400g/m2

speed	40-70bags/min	Glue Type	water Base Glue And Hot -melt Glue
Voltage	380V	Total/production power	67/40kw
Total weight	33.3T	Machine size(LxwxH)	27500x6200x2950mm
