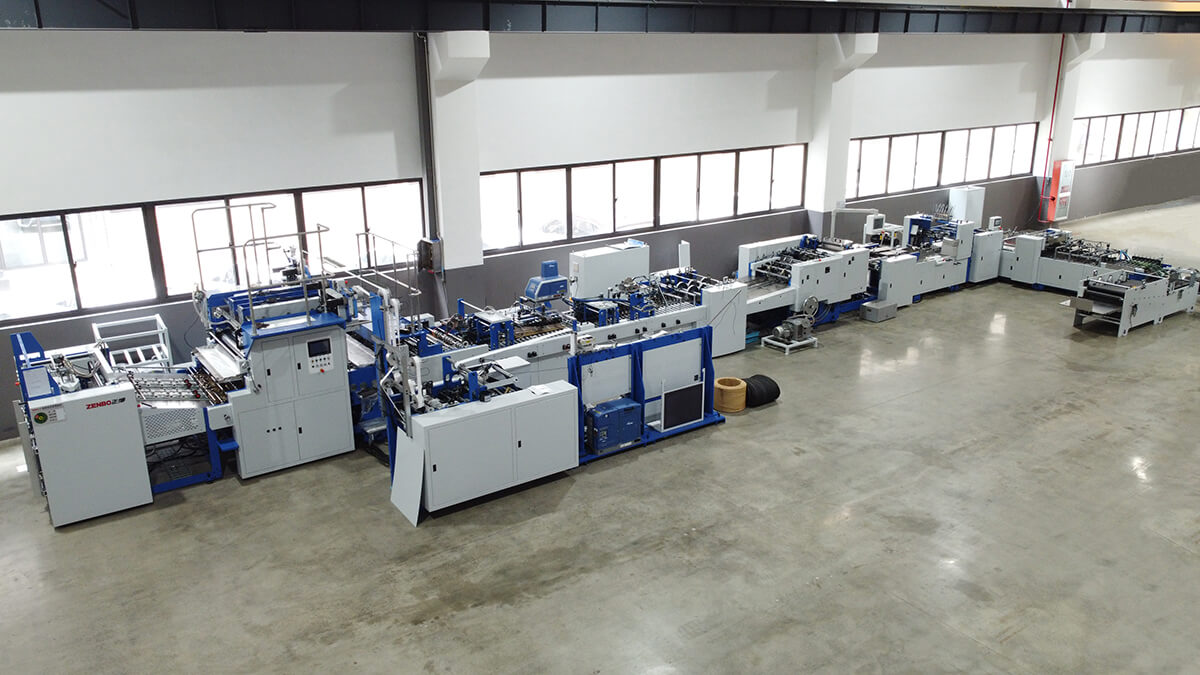

ZB 1450S-550S/ZB 1260S-450S Single-Sheet Fully Automatic Paper Bag Making Machine Revolutionizes The Bag Making Process

Single-sheet fully automatic paper bag making machine ZB 1450S-550S/ZB 1260S-450S. The hand ropes of this series of equipment can be selected from round and flat shapes, and use full servo hand slitting, which saves 6-8 per day compared with traditional paper bag machines. Kilograms of hand-rolled materials provide users with more choices and save production costs. Automatically fold the mouth (adhesive type) and place the bottom card. The equipment operates stably and the production speed is increased by more than 20%.
Handle Full servo cutting system.
The Intelligent Full servo Machine can Be customized.
This series of machines is a patented product invented by Zenbo (ZL 2017 1 0652588.2; ZL 2015 1 0162894.9; ZL 2015 1 0044478.9), and was awarded "the first (set) in key areas" in china.
paper: kraft paper, Art paper (Including Film Laminated paper).

product details

Production Working Flow

Machine Work Or Advantages Introduction Video

Description

The S-S series paper bag machine, building on the original S series, has added a new feature to insert bottom cardboard in the production line. This upgraded machine series is suitable for producing high-end paper bags with twist paper rope handles. The insert bottom cardboard process is smooth, and the machine operates stably and efficiently, ensuring that the paper bags do not deviate during the forming process. This model can disable the bottom cardboard placement function based on the actual paper bag order requirements.

From loading single sheets of paper to forming the final paper bags with bottom cardboard, the entire process is completed by the machine. The machine's PLC control system is user-friendly and straightforward, with a clear and intuitive LED display screen, allowing the operator to flexibly and conveniently control the switches at various points, thereby improving the speed and quality of completing paper bag orders.

The bottom cardboard placement length range for the ZB 1260S-450S is 214mm-444mm, with a width range of 64mm-174mm, matching the size range of paper bags this model can produce and enabling the production of most large paper bags available on the market.

The bottom cardboard placement length range for the ZB 1450S-550S is 254mm-544mm, with a width range of 94mm-244mm, aligning with the size requirements for mass-producing giant paper bags, fully meeting the needs for manufacturing such huge paper bags.

Standard configuration	Option 1	Option 2
Top folding Joint Type: Directly pasting Gluing position on Big side (Bag surface)	Top folding Joint Type: Insert pasting Gluing position:small side (Gusset)	Flat Handle

Main Technical parameters

3 Bag Mouth Processes
Sheet	Max.Sheet(LxW)	mm	1450X800	1450X740	1450X800
	Min.Sheet(LxW)	mm	780X520	780X520	780X520
	Sheet Weight	g/m²	120-190	120-190	120-190
Bag	Bag Tube Length	mm	460-740	520-740	460-740
	Top Folding Depth	mm	40-60	-	40-60
	Handle Patch Weight	g/m²	100-190	100-190	120-200
	Handle Patch Roll Diameter	mm	Φ1000	Φ1000	Φ1000
	Handle Patch Roll Width	mm	60-100	60-100	60-100
Bottom Cardboard	Weight	g/m²	250-400	250-400	250-400
	Width	mm	94-244	94-244	94-244
	Length	mm	254-544	254-544	254-544
Machine	Speed		50-70bags/min
	Voltage	V	380
	Total Weight	T	29
	Total/Production Power	kW	54.7/32.8
	Machine Size(LxWxH)	mm	23800X6500X3150

3 Bag Mouth Processes
Sheet	Max.Sheet(LxW)	mm	1260X600	1260X560	1260X600
	Min.Sheet(LxW)	mm	600X320	600X320	600X320
	Sheet Weight	g/m²	120-190	120-190	120-190
Bag	Bag Tube Length	mm	280-560	320-560	280-560
	Top Folding Depth	mm	40-60	-	40-60
	Handle Patch Weight	g/m²	100-190	100-190	100-200
	Handle Patch Roll Diameter	mm	Φ1000	Φ1000	Φ1000
	Handle Patch Roll Width	mm	60-100	60-100	60-100
Bottom Cardboard	Weight	g/m²	250-400	250-400	250-400
	Width	mm	64-174	64-174	64-174
	Length	mm	214-444	214-444	214-444
Machine	Speed		50-80bags/min
	Voltage	V	380
	Total Weight	T	27
	Total/Production Power	kW	49/29.4
	Machine Size(LxWxH)	mm	20700X6200X2950
