ZB 1450S-600/ZB 1300S-500 Single-Sheet Fully Automatic Paper Bag Making Machine Cutting-Edge Equipment

The S series single-sheet fully automatic paper bag machine (independently innovated) is used to produce eco-friendly shopping paper bags with round rope paper handles. This machine uses single sheets of paper as the feed material. The handle part is made from roll paper sheets and paper rope (round rope), which are used to make paper handles. Through servo conveying, servo cutting, and positioning, the handles are automatically pasted inside the bag's mouth, then the bag's top is automatically folded (pasted type), creased, formed into a tube, gusseted, bottom opened, glued, bottom sealed, and pressed into shape. The machine features a servo cutting head device that replaces mechanical structures, reducing setup time; the main and auxiliary machines are driven by separate servos, minimizing handle waste.

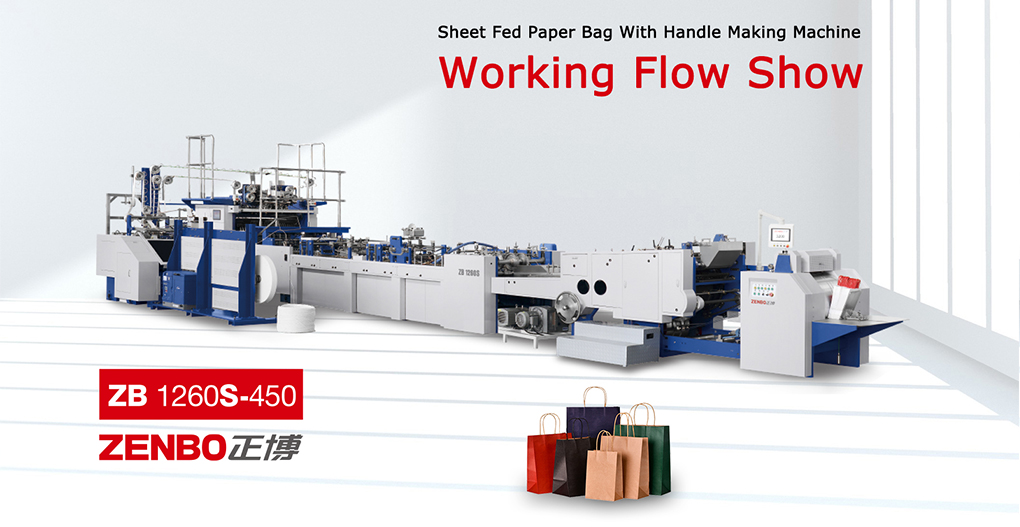

The ZB1300S-500 is an upgraded version of the ZB1260S-450, with an increased machine width. Compared to the ZB1260S-450, the length of the paper bags it can produce is increased by 50mm, with a finished bag length range of 220mm-500mm and a width range of 80mm-180mm. This machine also offers an optional increase in paper bag width, changing the width range to 100mm-230mm. Customers can select the machine according to their paper bag order sizes.

The ZB1450S-600 can mass-produce giant paper bags. The primary finished bag length range for this machine is 330mm-600mm, with a gusset width range of 100mm-250mm. It is designed to produce large shopping bags, meeting the needs of various shopping scenarios and carrying multiple items.
