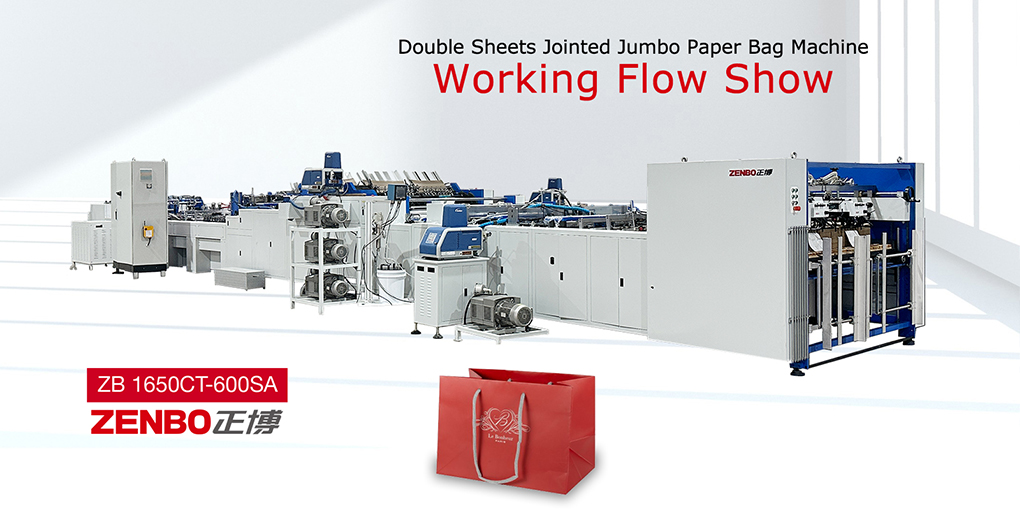

ZB 1650CT-600SA/ZB 1450CT-550SA Fully Automatic Double Paper Bag Making Machine Meets The Needs Of Different Industries
Description
CT-SA series equipment's primary function is to simultaneously feed two sheets of paper into the machine, where they are glued together to form a single sheet, thus creating large paper bag width. Alternatively, it can directly use single large-format paper sheets to produce paper bags.
Typically, producing large-width paper bags requires large sheets of paper. However, due to the limitations of the printing size of offset printing machines, paper bag companies may face significant financial pressure when directly purchasing large-format offset printing machines, die-cutting machines, laminating machines, etc., especially when the demand for giant paper bag orders is not substantial. The CT-SA series equipment effectively addresses this issue.
The CT-SA series machines boast high precision and stability, enabling the seamless joining of two paper sheets and the insertion of bottom cards in one go. They operate at high speed with low defect rates in the output paper bags.
The ZB1450CT-550SA model primarily produces paper bags with finished lengths ranging from 280mm to 550mm and gusset widths ranging from 100mm to 240mm.
The ZB1650CT-600SA model primarily produces paper bags with finished lengths ranging from 320mm to 600mm and gusset widths ranging from 100mm to 240mm.

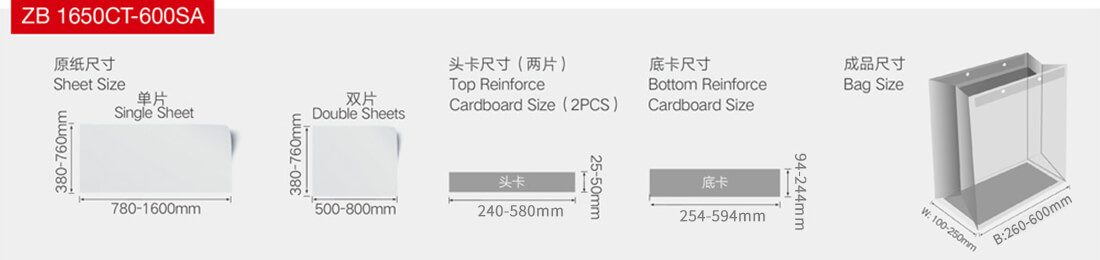

For detailed information regarding the parameter ranges for single and double sheet entry into the machine, please refer to the table data.
|
standard configuration |
Insert pasting |
option 1 |
|
Double Feeders Feeding(single Feeder), Automatic Top Reinforced cardboard pasting(2pcs), Top Folding,Bottom cardboard Inserting(square Bottom) |
|
4pcs Top Reinforce cardboard (F) |
 |
Main Technical parameters
| Max. one sheet(L*w) | 1600x760mm |
| Min. one sheet(L*w) | 780x380mm |
| Max. Double sheets(L*w) | 800x760mm |
| Min. Double sheets(L*w) | 500x380mm |
| sheet weight | 190-250g/㎡ |
| Top Folding Depth | 30- 60mm |
| Bag Tube Length(H) | 350-720mm |
| Bottom width(B) | 100- 240mm(≤800mm-w-20) |
| Bag width(w) | 320- 600mm(≤800mm- B-20) |
| Top Reinforced paperweight | 200-500g/㎡ |
| Top Reinforced paper Length | 300- 580mm |
| Top Reinforced paper width | 25- 50mm |
| power | 50/30Kw |
| Voltage | 380V |
| Bottom cardboard width | 94- 234mm |
| Bottom cardboard Length | 314- 594mm |
| speed | 25-50bags/min |
| Machine size(LxwxH) | 26350x6100x3030mm |
| Total weight | 22.5T |
| Glue Type | water Base Glue And Hot-melt Glue |
| Max. one sheet(L*w) | 1450x760mm |
| Min. one sheet(L*w) | 780x380mm |
| Max. Double sheets(L*w) | 725x760mm |
| Min. Double sheets(L*w) | 500x380mm |
| sheet weight | 190-250g/㎡ |
| Top Folding Depth | 30- 60mm |
| Bag Tube Length(H) | 350-720mm |
| Bottom width(B) | 100- 240mm(≤725mm-w-20) |
| Bag width(w) | 280- 550mm(≤725mm- B-20) |
| Top Reinforced paperweight | 200-500g/㎡ |
| Top Reinforced paper Length | 260- 530mm |
| Top Reinforced paper width | 25- 50mm |
| power | 48/28.8Kw |
| Voltage | 380V |
| Bottom cardboard width | 94- 234mm |
| Bottom cardboard Length | 274- 544mm |
| speed | 25-50bags/min |
| Machine size(LxwxH) | 26500x6100x1800mm |
| Total weight | 23.5T |
| Glue Type | water Base Glue And Hot-melt Glue |
