ZB 560RS/ZB 460RS Revolutionize Packaging Production With Automatic Roll Feeding Paper Bag Making Machine

The automatic roll feeding paper bag making machine is a equipment used to produce paper bags. It can automatically cut,glue,fold and seal from rolls of paper to form finished bags. This type of machine is often used in mass production to improve production efficiency and reduce labor costs. It is widely used in food packaging, daily necessities packaging and other fields.
This series of equipment adopts the roll feeding method and is mainly used to produce environmentally friendly paper bags and environmentally friendly paper bags without handles.
The technology of this series of equipment is in sync with the world. It adopts servo drive control system and has the characteristics of high degree of intelligence, high production efficiency and high finished product qualification rate. It is suitable for the large-scale production of environmentally friendly food packaging bags, and is also suitable for the production mode of multiple varieties and small batches, meeting the needs of It is a very ideal roll environmentally friendly paper bag machine for the production of paper bags of different specifications and order quantities.

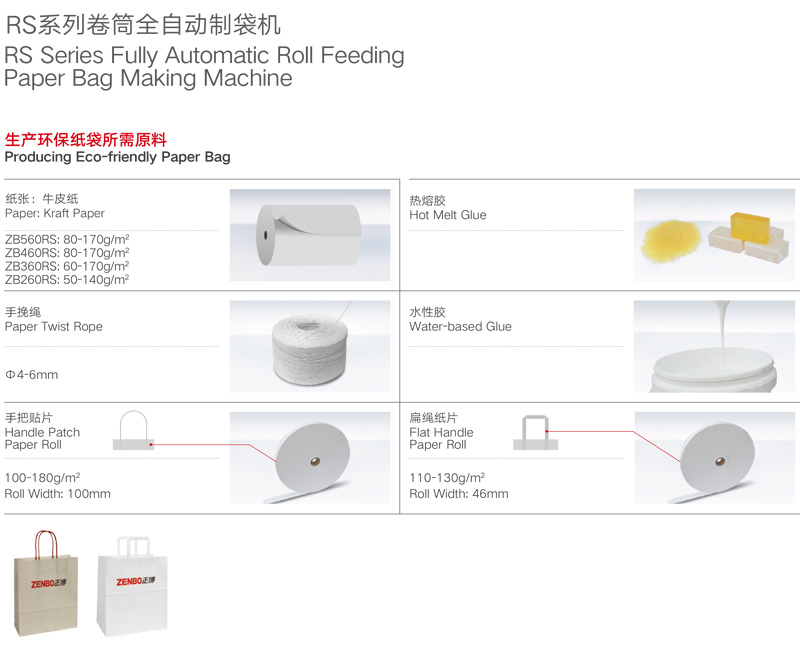

Paper: 80-170g white kraft paper/yellow kraft paper

product details

Production Working Flow

Machine Work Or Advantages Introduction Video

Description

The RS series equipment uses a roll feeding method, primarily designed for producing eco-friendly paper bags with or without handles. The RS series technology is on par with international standards, featuring a servo-driven control system with high levels of automation, production efficiency, and product quality. This makes it suitable for large-scale production of everyday paper bags, such as those used for buying vegetables and fruits, supermarket shopping, and takeout. It also supports multi-variety small-batch production, meeting the requirements for different bag specifications and order quantities, making it an ideal roll-fed eco-friendly bag machine.

The forming template of this series uses a symmetrical adjustable dual-template structure, eliminating the need to change templates for different bag sizes. This effectively reduces the time needed to adjust bag sizes and increases machine productivity. The series also features a paper roll cutting knife that can be freely switched between a serrated knife and a flat knife, fully meeting customers' needs for different bag mouth types.

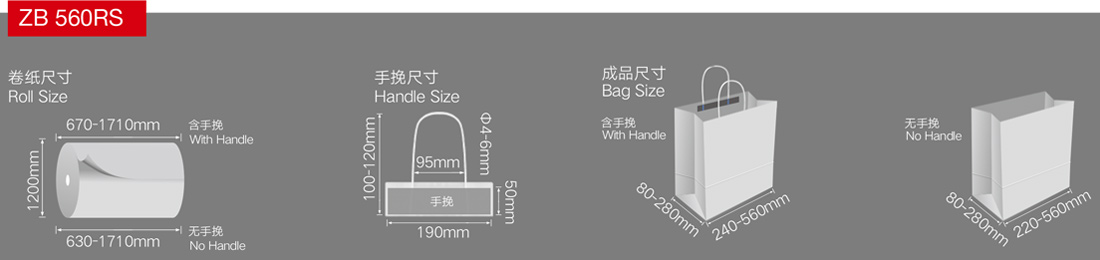

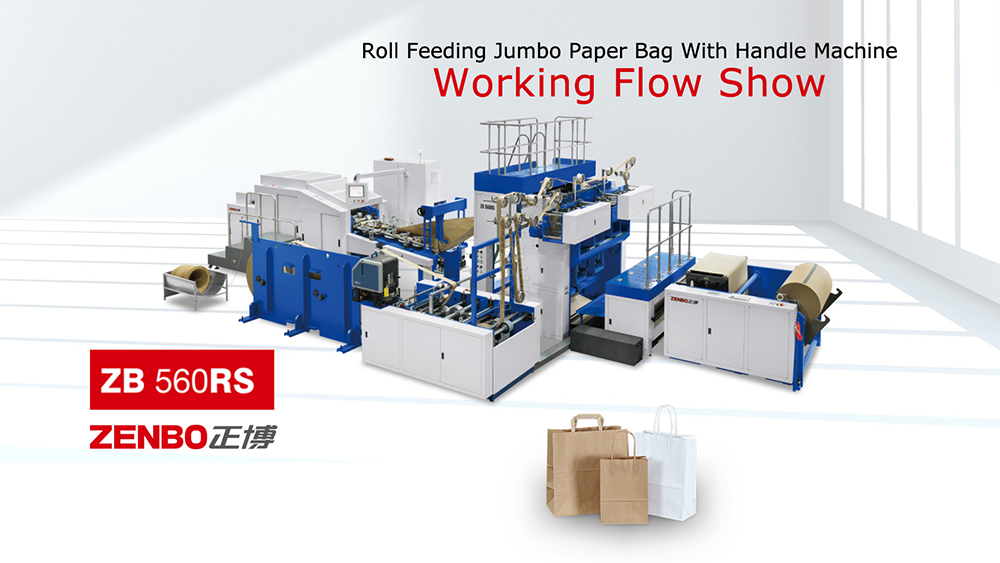

The ZB560RS primarily produces extra-large paper bags, with a finished bag length range of 240mm to 560mm and a gusset width range of 80mm to 280mm. The machine can stably and efficiently produce paper bags with a length of 560mm, offering a significant advantage in the paper bag machinery industry.

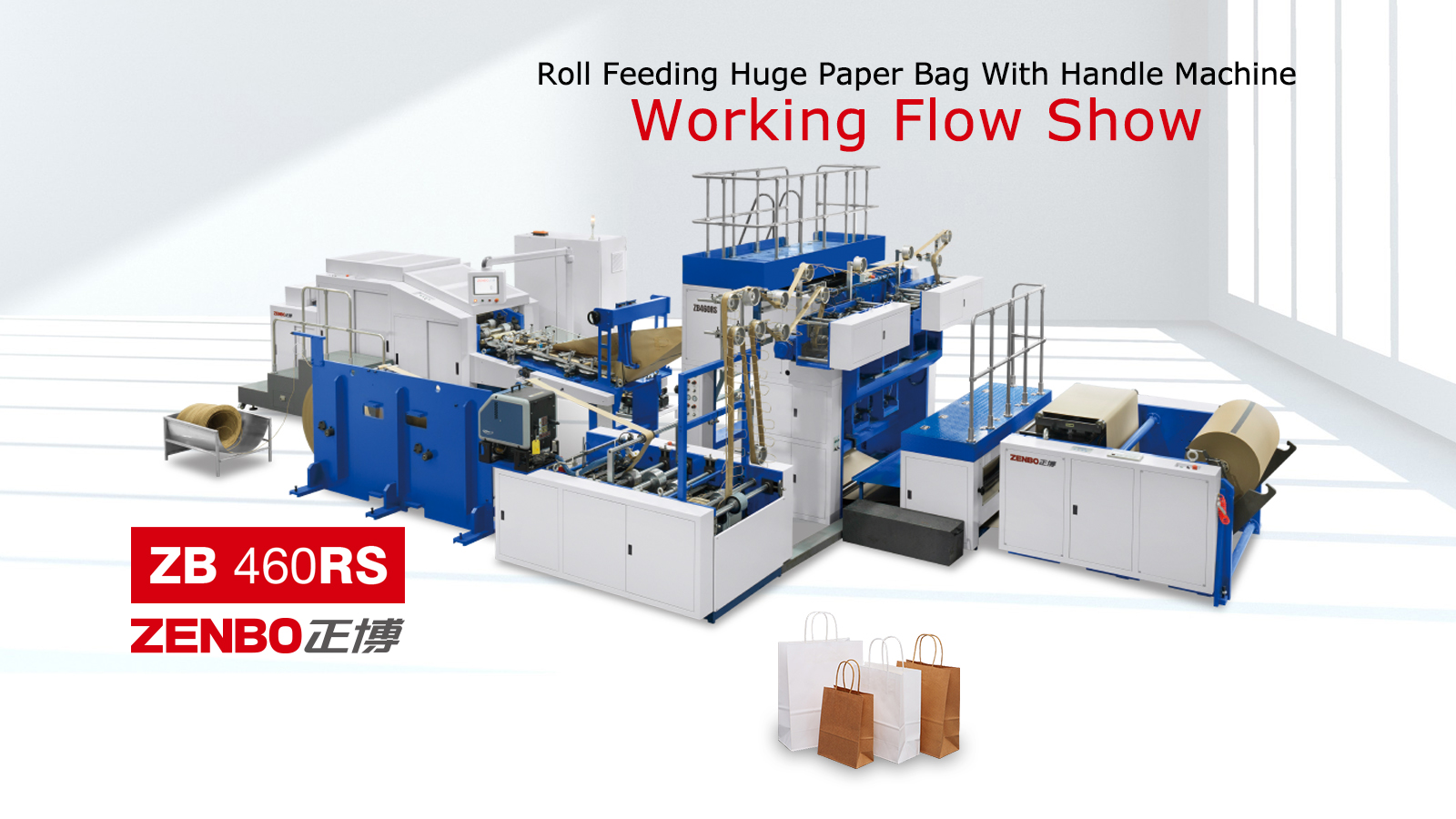

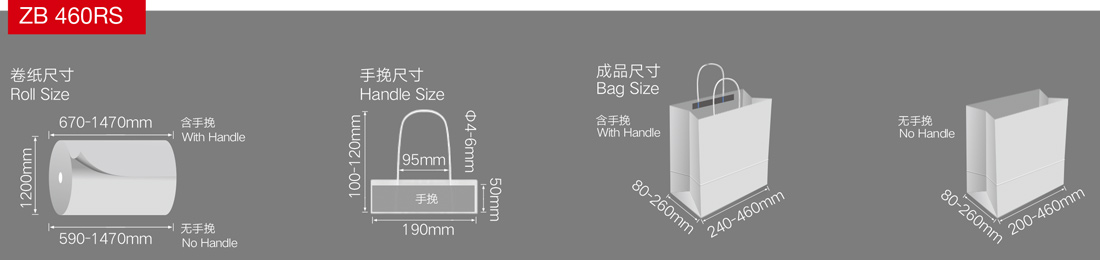

The ZB460RS primarily produces large paper bags, with a finished bag length range of 240mm to 460mm and a gusset width range of 80mm to 260mm. It is suitable for paper weights ranging from 80 to 170 gsm.

standard configuration	option 1	option 2

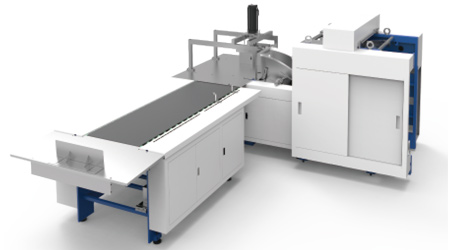

Fixed point Humidification	Flat Handle	Automatic bag collection
Fixed point Humidification

Main Technical parameters

2 Bag Mouth processes	with Handle	No Handle
paper Roll width	670--1710mm	630--1710mm
Max.paper Roll Diameter	Φ1200mm	Φ1200mm
core Diameter	Φ76mm(3")	Φ76mm(3")
paper weight	90--170g/m2	80--170g/m2
Bag Body width	240--560mm	220--560mm
cut off Length	290--710mm	290--810mm
(paper Tube Length)
Bag Bottom size	80--280mm	80--280mm
Handle Rope Height	100--120mm	——
Handle Rope Diameter	Φ4--6mm	——
Handle patch Length	190mm	——
paper Rope center Distance	95mm	——
Handle patch width	50mm	——
Handle patch Roll Diameter	Φ1200mm	——
Handle patch Roll width	100mm	——
paper patch weight	100--180g/m2	——
Max production speed	110bags/min	150bags/min
Total power	42Kw
overall Dimension	13250x5100x3300mm
Total weight	24.8T

2 Bag Mouth processes	with Handle	No Handle
paper Roll width	670--1710mm	630--1710mm
Max.paper Roll Diameter	Φ1200mm	Φ1200mm
core Diameter	Φ76mm(3")	Φ76mm(3")
paper weight	90--170g/m2	80--170g/m2
Bag Body width	240--560mm	220--560mm
cut off Length	290--710mm	290--810mm
(paper Tube Length)
Bag Bottom size	80--280mm	80--280mm
Handle Rope Height	100--120mm	——
Handle Rope Diameter	Φ4--6mm	——
Handle patch Length	190mm	——
paper Rope center Distance	95mm	——
Handle patch width	50mm	——
Handle patch Roll Diameter	Φ1200mm	——
Handle patch Roll width	100mm	——
paper patch weight	100--180g/m2	——
Max production speed	110bags/min	150bags/min
Total power	42Kw
overall Dimension	13250x5100x3300mm
Total weight	24.8T

speed	40-70bags/min	Glue Type	water Base Glue And Hot -melt Glue
Voltage	380V	Total/production power	67/40kw
Total weight	33.3T	Machine size(LxwxH)	27500x6200x2950mm
