ZB 700CS-240S Single-Sheet Fully Automatic Paper Bag Making Machine Innovation Demands Excellent Quality

The single-sheet fully automatic paper bag making machine has many advantages such as high efficiency, flexibility, precision, automation, high quality, reliability and stability. It is an important equipment on the paper production line and can meet the various needs of customers for paper production. This equipment adopts a variety of leading technologies and processes invented by Zenbo, and has a high level of market value preservation. This equipment is mainly used to produce gift bags for tobacco, alcohol, dairy products, beverages, etc. It has served many first-line well-known brands of gift bags, and has sold more than 500 units in total. If you produce gift bags, have strict requirements on paper bag quality, and hope to achieve higher production efficiency, this equipment is your ideal choice.
Standard functions: Automatically fold the top and insert the bottom cardboard (square bottom).
Paper: coated paper, white cardboard, kraft paper, gray paper, etc. All paper on the machine needs to be die-cut.

    Description

    CS-S series machines are equipped with advanced pre-stacking paper feeders, which enable continuous paper feeding without stopping the machine, thereby maintaining high-speed production of paper bags in large quantities and increasing machine capacity. The excellent water-based and hot melt adhesive application devices elevate the machine's adaptability to paper.

    This series of machines is installed with ultrasonic double-sheet detection devices at the paper feeding inlet, effectively preventing blockages caused by overlapping paper sheets. Additionally, paper jam detection devices are installed at other locations to better address problems when they arise. A counting device is also installed at the paper bag output position to quickly tally the quantity of bags produced per batch.

    Many customers have been using the CS-S series machines for years to produce paper bags in large quantities. Zenbo has always prioritized high stability and precision, helping users save on labor costs and ultimately earn more profit.

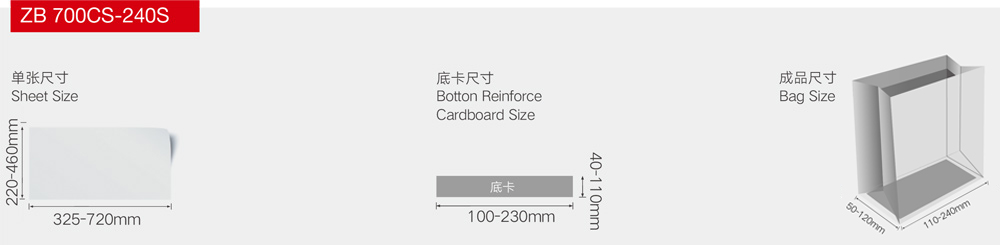

    The ZB700CS-240S model is primarily used to produce small to medium-sized high-end paper bags with paper weights ranging from 120gsm to 250gsm. The finished bag length ranges from 110mm to 240mm, and the width ranges from 50mm to 120mm. The bottom card length ranges from 100mm to 230mm, and the width ranges from 40mm to 110mm.

    Main Technical parameters

    ZB700CS (1)k99
    Max.sheet (LX w) 720x460mm
    Min.sheet (LX w) 325x220mm
    sheet weight 120-250g/㎡
    Top Folding Depth 30-50mm
    Bag Tube Length 180-430mm
    Bottom width 50-120mm
    Bag width 110-240mm
    Bottom cardboard weight 250g-400g/㎡
    Bottom cardboard width 100-230mm
    Bottom cardboard Length 40-110mm
    speed 35-60bags/min
    Machine size(LxwxH) 17900X5000X1700mm
    Total/production power 30/18kw
    Voltage 380V
    Total weight 13.5T
    Glue Type water Base Glue And Hot-melt Glue
