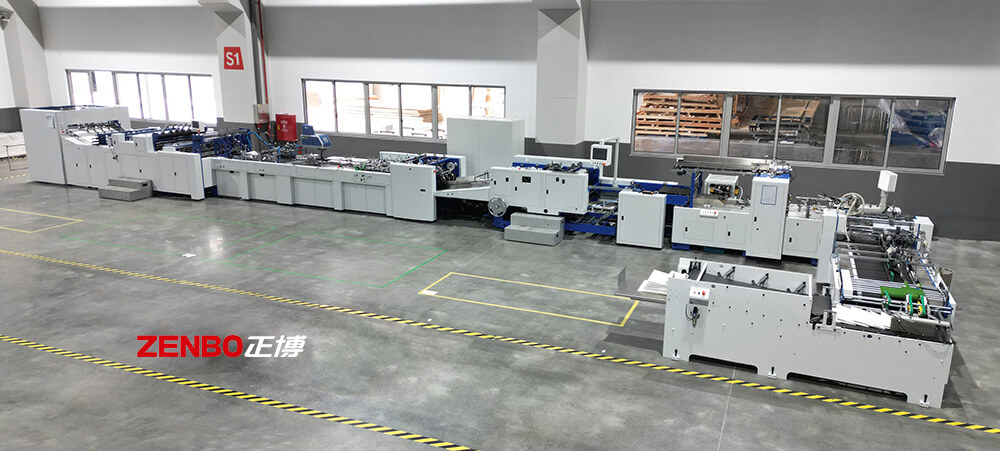

ZB 700CT-240S Single-Sheet Fully Automatic Handbag Making Machine Has Stable Production And Is Simple And Easy To Control

ZB 700CT-240S sheet-type fully automatic handbag bag making machine brings together the most cutting-edge technology of domestic and foreign handbag machines. It can directly use printed sheet paper, compound paper film or roll paper for production. This machine has the characteristics of stable production, low noise, high yield, fast production speed, simple operation, easy control, automatic alarm, etc. It is an ideal equipment for producing handbags and shopping bags.
The single-sheet fully automatic handbag bag making machine series equipment has served many well-known global brands and is sold to European and American developed countries such as Germany, Italy and the United States, as well as developing countries such as South America and Southeast Asia, with annual sales exceeding 100 units.
The Intelligent Full servo Machine can Be customized.
paper : Art paper,special paper, Ivory Board paper. over 170g/听 paper Need Die-cutting In Advance.

    Description

    The CT-S single-sheet feed boutique paper bag machine is Zenbo's flagship series in the paper bag machinery industry. This machine excels in high-speed mass production of paper bags with seamlessly integrated top folding, top reinforced card, and bottom cardboard, ensuring no gaps and precise adhesive application along the bag's gusset. Since the introduction of the CT-S series machines, they have been widely adopted by companies worldwide and have received numerous positive reviews.

    The ZB700CT-240S has bottom cardboard placement length range of 104mm to 234mm and a width range of 44mm to 114mm. The top reinforced card size ranges from 90mm to 220mm in length and 25mm to 40mm in width. This model primarily caters to the mass production of small luxury and boutique paper bags and is commonly used in fields such as jewelry and accessories.
    standard configuration Insert pasting option 1 option 2 option 3

    Automatic Top Reinforced cardboard pasting(2 pcs),Top Folding, Bottom cardboard Inserting, square Bottom.

    ZB1450CT-550S (6)0n9
    Top Reinforce  cardboard( F ) pre-punch split Bottom (T)
     ZB1450CT-550S (3)uqe  ZB1450CT-550S (4)cqi ZB1450CT-550S (5)487

    Main Technical parameters

    square Bottom (1)xgi
    Max.sheet (LX w) 720x460mm
    Min.sheet (LX w) 340x220mm
    sheet weight 120-250g/m2
    Top Folding Depth 30-50mm
    Bag Tube Length 180-430mm
    Bottom width 50-120mm
    Bag width 110-240mm
    Top Reinforced paperweight 200-500g/m2
    Top Reinforced paper Length 90-220mm
    Top Reinforced paper width 25-40mm
    Bottom cardboard weight 250-400g/m2
    Bottom cardboard width 44-114mm
    Bottom cardboard Length 104-234mm
    speed 40-70bags/min
    Machine size 19500x5600x1700mm
    (LxwxH)
    Total/production power 53.3/32.2kw
    Voltage 380V
    Total weight 18T
    Glue Type water Base Glue And Hot-melt Glue
    zb1450ckpc

    ZB700CT-240SF

    ZB700CT-240SFxge 65dff9c46k
