ZB 80S/ZB 60S/ZB 30S Paper Bottom Gluing Machine Simplifies Production Process

ZB 80S/ZB 60S/ZB 30S paper bottom gluing machine is a professional equipment used to produce paper bottoms. It uses advanced automation technology to efficiently complete the gluing work on the bottom of the paper. The machine operates quickly and accurately to ensure that the bottom of the paper is firmly bonded, flat and beautiful. The equipment is simple to operate and easy to maintain. It is one of the indispensable and important equipment in the paper production line.
This series of equipment is a professional bottom pasting machine invented by Zhengbo (ZL 2015 1 0044478.9; ZL 2013 1 0754999.4). Zhengbo invented the function of automatically placing the bottom card, which is applied to this series of equipment. This series of equipment automatically delivers bags, places bottom cards, and seals bottoms (eight-shaped bottoms). It has high production efficiency and high quality stability. It is suitable for the production of multiple varieties and small batches! It is even more advantageous when applied to tissue paper bags with bottoms.
Paper: kraft paper, coated paper, white paper, white cardboard.

product details

Production Working Flow

Machine Work Or Advantages Introduction Video

Description

The ZB80S, ZB60S, and ZB30S Handbag bottom gluing machine ( independent innovation )adopts servo motor drive , PLC control system , achieve automatic bottom cardboard inserting function . It meets the special requirement of boutique paper bag making.

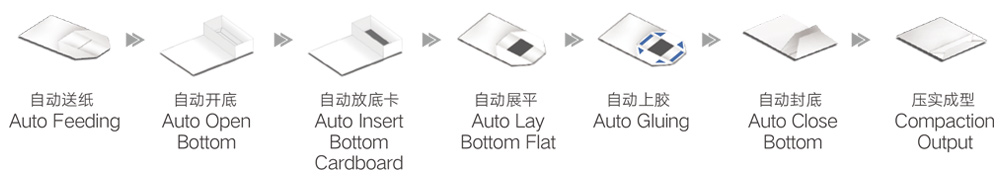

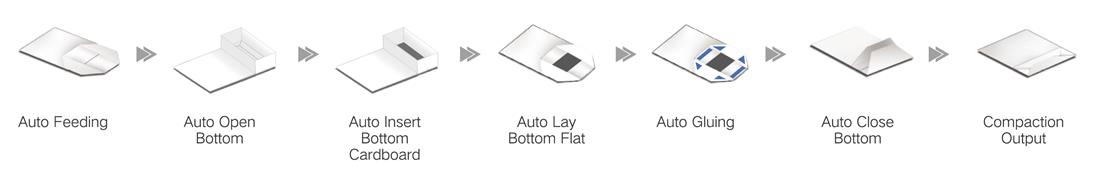

The basic working flow of this machine is automatic feeding the unclosed-bottom paper bag , bottom opening , bottom cardboard inserting , two times positioning , coated water base(or spray gluing),bottom closing and compaction output the paper bag.

With servo system for bottom cardboard taking and bottom cardboard inserting , ensure the bottom cardboard process is stable and high precisely .Use gluing wheel to coated the water base glue on bag bottom ( or spray gluing ) , make the glue is evenly coated on full bottom , not only improve the bag quality , but also increase the profit for customers .

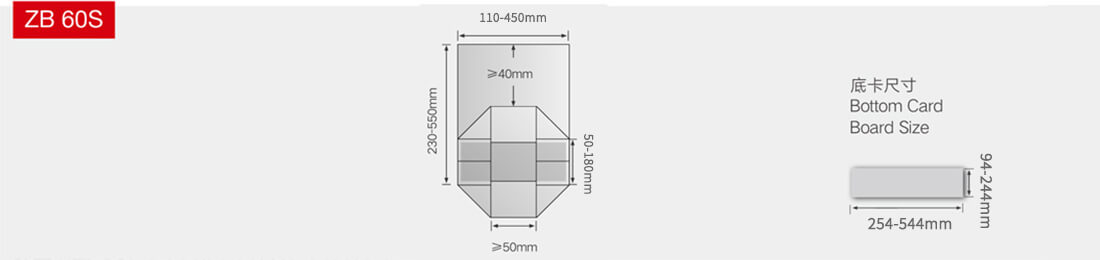

The ZB60S is primarily designed for bottom cardboard inserting and bottom forming of normally sized paper bags in the market.

The ZB80S undertakes the task of bottom card placement and bottom pasting for large-sized paper bags.

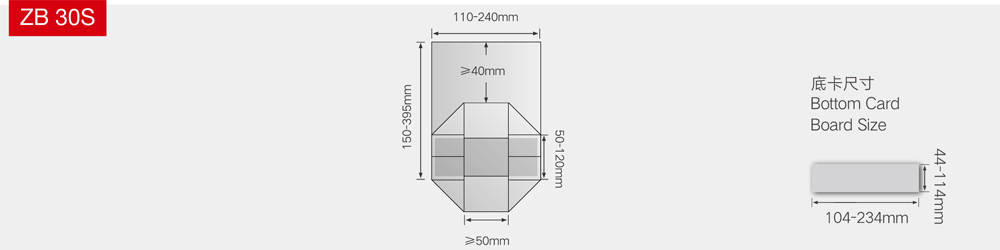

while the ZB30S efficiently and accurately performs bottom card placement and bottom sealing functions for small-sized paper bags.

For specific parameters, please refer to the diagram below. Feel free to contact us if you have any questions.

Main Technical parameters

Sheet	Sheet Weight	g/m²	150-250
Bottom Cardboard	Weight	g/m²	250-400
	Width	mm	94-244
	Length	mm	254-544
Machine	Speed		40-60 bags/min
	Machine Size(LxWxH)	mm	5100x7300x1733
	Total /Production Power	kW	12/7.2
	Voltage	V	380
	Total Weight	T	5

Sheet	Sheet Weight	g/m²	120-250
Bottom Cardboard	Weight	g/m²	250-400
	Width	mm	44-174
	Length	mm	104-444
Machine	Speed		40-90 bags/min
	Machine Size(LxWxH)	mm	4800x7600x1733
	Total /Production Power	kW	12/7.2
	Voltage	V	380
	Total Weight	T	4.5

Sheet	Sheet Weight	g/m²	120-250
Bottom Cardboard	Weight	g/m²	250-400
	Width	mm	44-114
	Length	mm	104-234
Machine	Speed		40-70 bags/min
	Machine Size(LxWxH)	mm	4050x6600x1700
	Total /Production Power	kW	15/9
	Voltage	V	380
	Total Weight	T	3.5
