ZB160 Fully Automatic Paper Bag Knotting And Threading Machine
Description

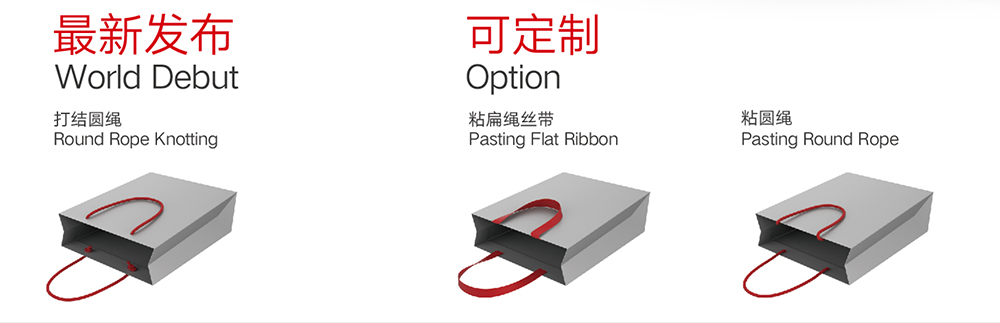

The ZB160 fully automatic paper bag knotting and threading machie is world debut.
Main Technical Parameters
| NO. | ZB160 |

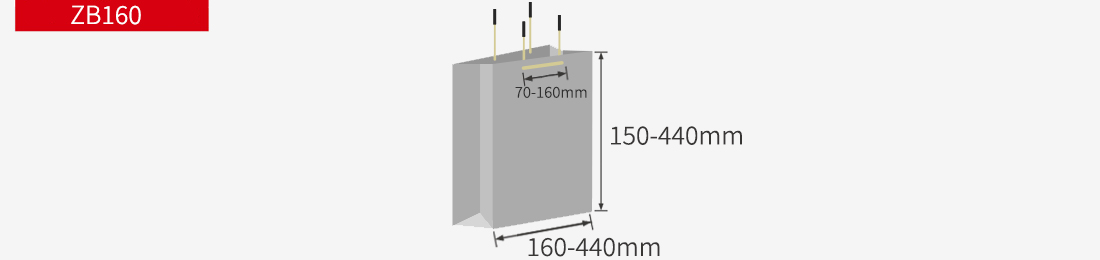

| Bag Width | 160-440mm |
| Bag Face Height | 150-440mm |
| Paper Bag Weight | 157-300gsm |
| Hole Spacing For Rope Threading | 70-160(60-70,>160 can be customized) |
| String Hole Size | Φ4-6 |
| Hand Rope Length | Cotton rope, 3-strand rope, silk ribbon/cord, etc. |
| Machine Dimensions | 3000*1800*2000mm |
| Max.Speed | 48bags/min |
| Compressed Air | 4-6Mpa |
| Machine Net Weight | 1.8T |
| Power (Max) | 7.5KW |
| Applicable Rope | Each end strand pulled out 105-145mm (Total length: 280-420mm) |
