ZB1650CT-600A Double-piece bag making machine ZB1650CT-600BA Double-piece bag gluing machine
Description
ZB1650CT-600A The fully automatic double-piece tote bag making machine is an efficient and intelligent production equipment designed for the production of double-piece or single-piece tote bags. This model is equipped with a double/single feeder system, which can achieve fast and accurate material delivery, ensuring the efficiency and stability of the production process.
The equipment has the function of automatic header card attachment, which can automatically attach the header card during the bag production process, improving production efficiency and reducing labor costs. At the same time, the eight-shaped bottom design makes the bottom of the finished bag more stable and has a strong load-bearing capacity, which is suitable for a variety of packaging needs.

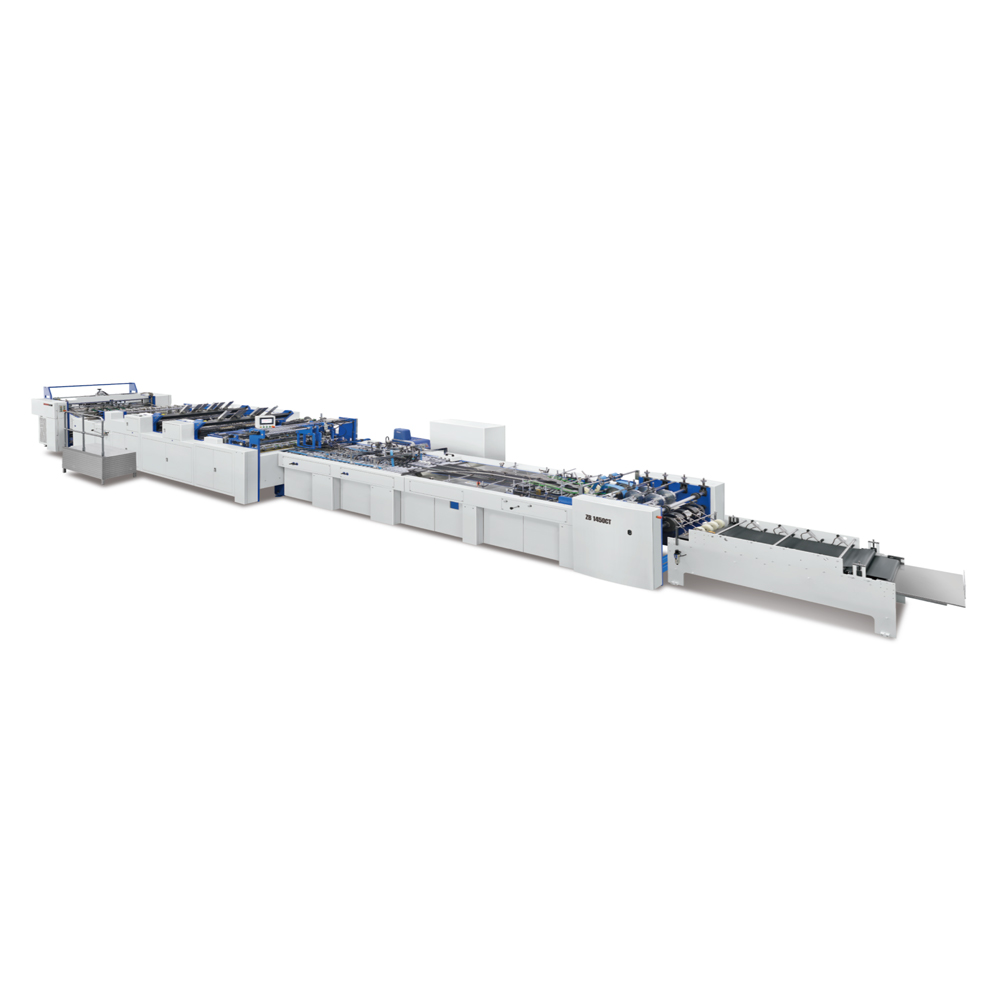

ZB1650CT-600BA The double-piece bag gluing machine is a highly efficient equipment designed for the production of bags, with many significant advantages:

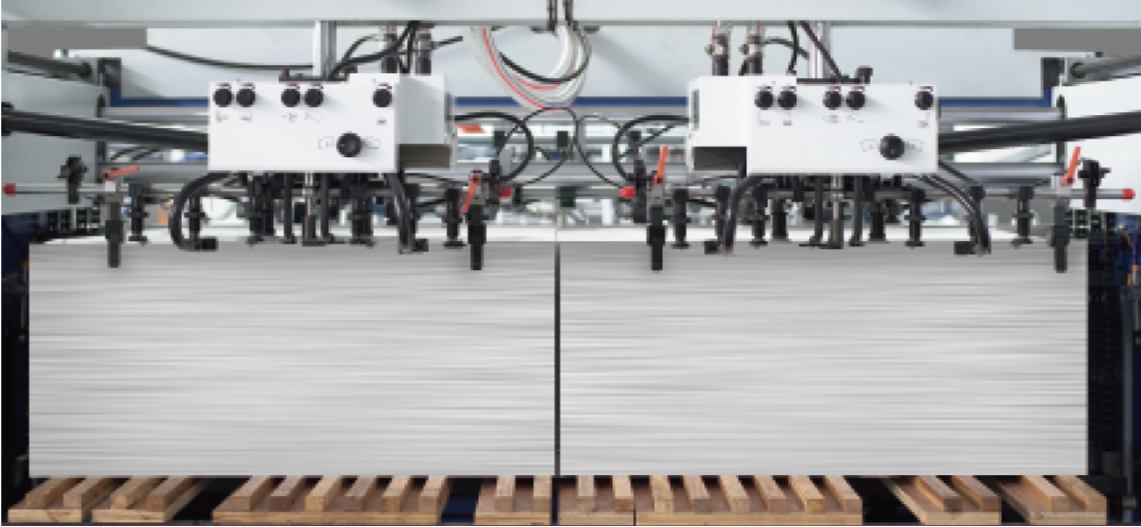

1.Efficient production: This machine is equipped with a double/single feeder system, which can achieve fast and accurate material transportation, greatly improve production efficiency and meet large-scale production needs.
2.Automatic header card: The automatic header card function makes the production process more intelligent, reduces manual intervention, improves the continuity and stability of production, and ensures that each bag can fit perfectly.
3.Strong flexibility: The double-piece handbag tube gluer can flexibly adjust the size and shape of the bag according to different production needs, adapt to various market needs, and meet customer customization.
4.Save labor costs: The high degree of automation reduces dependence on manual labor and reduces labor costs. It also reduces errors caused by manual operations and improves product consistency.
5.Easy to operate: The equipment is user-friendly in design, with a friendly operation interface, easy to use, and relatively simple to maintain, which reduces the training cost of operators.
6.Stability and durability: The use of high-quality materials and advanced manufacturing technology ensures the stability and durability of the equipment during long-term operation, reduces the failure rate and extends the service life.
Main Technical parameters
| 4 Pieces Top Reinforce Cardboard(F) |
Bag Size |  |
 |
 |
| Sheet | Max. One Sheet(LxW) | mm | 1600x760 |
| Min. One Sheet(LxW) | mm | 780x380 | |
| Max. Double Sheets(LxW) | mm | 800x760 | |
| Min. Double Sheets(LxW) | mm | 500x380 | |
| Sheet Weight | g/m² | 170-250 | |
| Bag | Top Folding Depth | mm | 30-60 |
| Bag Tube Length | mm | 350-720 | |

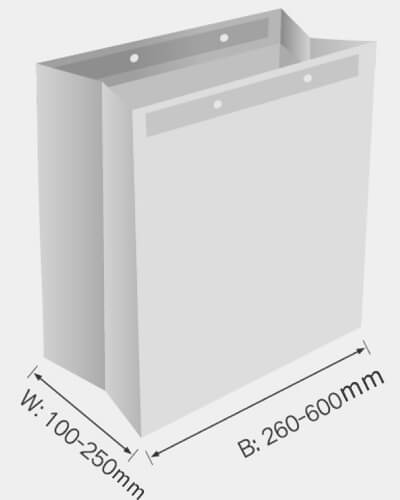

| Bottom Width | mm | 100-250(≤800-W-20) | |
| Bag Width | mm | 260-600(≤800-B-20) | |
| Top Reinforced | Paper Weight | g/m² | 200-500 |
| Paper Length | mm | 240-580 | |
| Paper Width | mm | 25-50 | |
| Machine | Power | kW | 37.9/22.7 |
| Voltage | V | 380 | |
| Speed | 40-60bags/min | ||
| Machine Size(LxWxH) | mm | 22800X2700X1800 | |
| Total Weight | T | 22.8 |
| 4 Pieces Top Reinforce Cardboard(F) |
Pasting Flat Ribbon Inline |
Bag Size |  |
 |
 |
 |
| Sheet | Max. One Sheet(LxW) | mm | 1600x760 |
| Min. One Sheet(LxW) | mm | 780x380 | |
| Max. Double Sheets(LxW) | mm | 800x760 | |
| Min. Double Sheets(LxW) | mm | 500x380 | |
| Sheet Weight | g/m² | 170-250 | |
| Bag | Top Folding Depth | mm | 30-60 |
| Bag Tube Length | mm | 350-720 | |
| Bottom Width | mm | 100-250(≤800-W-20) | |
| Bag Width | mm | 260-600(≤800-B-20) | |
| Top Reinforced | Paper Weight | g/m² | 200-500 |
| Paper Length | mm | 240-580 | |
| Paper Width | mm | 25-50 | |
| Machine | Power | kW | 35.7/21.4 |
| Voltage | V | 380 | |
| Speed | 40-60bags/min | ||
| Machine Size(LxWxH) | mm | 18700X2700X1800 | |
| Total Weight | T | 17.1 |
